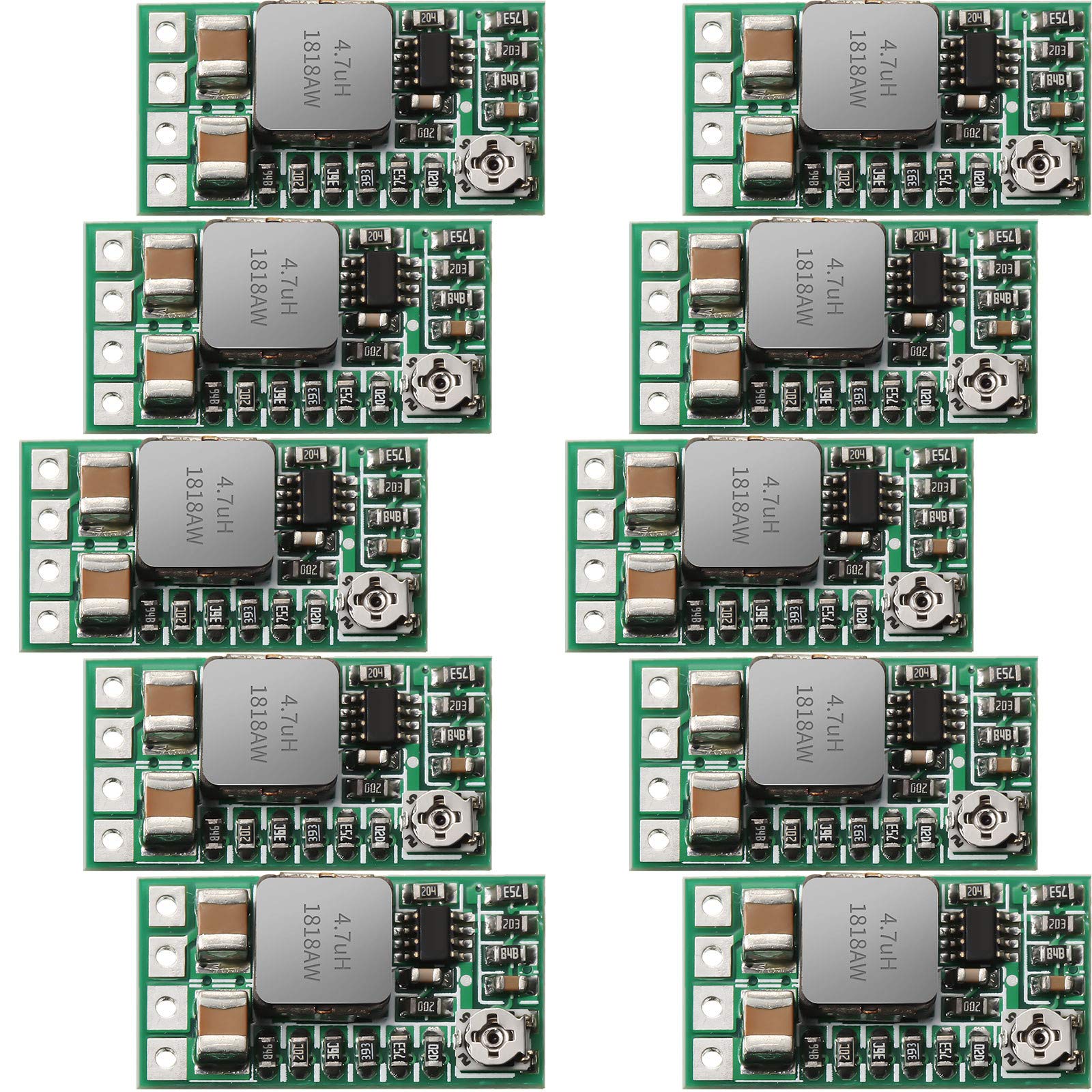

10 Pieces 5v Regulator Module Mini Voltage Reducer DC 4.5-24V 12V 24V to 5V 3A Volt Buck Converter Power Supply Transformer Module

1/2

2/2

Ended

Won For

Search Active Auctions

Description

10 Pieces 5v regulator module mini voltage reducer DC 4.5 - 24V 12V 24V to 5V 3A volt buck converter power supply transformer module Parameters: Input voltage: DC 4.5 - 24V Output voltage: integrated adjustable and fixed output, and adjustable range is 0.8 - 17V, fixed output is 1.8V, 2.5V, 3.3V, 5V, 9V, 12V, able to be chosen on the back side. Output current: 3A max, please enhance cooling work when it is full load. When actual tested input 12V and output is 1.5A, no need to add other system. Enable function control: yes, low electric level will stop working when high electric level is working. High electric level is 2-5V, low electric level is 0V or so. Operating temperature: -40℃ - +85℃, industrial class, the higher the operation temperature is, and the smaller the output power is. Conversion efficiency: 97.5%, 6.5V to 5V, 0.7A Frequency: 500KHz Output ripple: 20 mV, 12V to 5V, 3A, 20M width Output over-voltage protection: no Temperature rising range at full load: 40℃ Static current: 0.85mA Voltage adjustment rate: -0.5%, 0.5% Dynamic response speed: 5% 200uS Output short-circuit protection: yes, please don't keep making it short-circuit. Output reverse connection protection: no Wiring method: soldering Output method: soldering or pins Welding hole spacing: 2.54 mm Size: 20 x 11 x 5 mm Package includes: 10 x Mini 5v regulators

Item Details

Pickup Location

4031 Market Center Dr Suite 303

North Las Vegas, NV, 89030

Quality

New

Functional

No Damage

Assembly Required

In Package

No Missing Parts

Estimated Retail Price

$9.99

Buyers Premium

15%

Inventory Number

1054682901

Found in

Home Improvement Electrical

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

brand

Weewooday

weight

0.06 lbs

More features

Voltage range: the power supply module input is DC 4.5 - 24V, adjustable range is 0.8 - 17V, fixed output is 1.8V, 2.5V, 3.3V, 5V, 9V, 12V which can be chosen on the back; Output current is 3A max, please increase the cooling work at full load; If the actual test input is 12V and output is 1.5A, no other system is required
Adjustable and fixed voltage output: this buck converter allows you to get fixed output voltage by soldering the pot on the board, and you can adjust the fixed output voltage by potentiometer as you needed
Product performance: the voltage regulator module has high efficiency, ultra-compact size, high frequency, low ripple and stable working performance, widely applicable for fixing work: Synchronous rectification and the circuit conversion efficiency is as high as 97.5%
Reliable material: regulator module is made with quality potentiometer and 3A current chip, high current shielding inductor and MLCC solid capacitor with long service life; High current shielding inductance, ultra-low internal resistance, maximize conversion efficiency, reduce heat generation
Convenient to use: integrated enable port of the regulator board defaults to working mode and will be closed when it is at low electric level off, and with ultra-low quiescent current, quiescent current is 0.85 mA; It can be connected to the car battery without a switch, cigarette lighter cord or the ACC power cord
