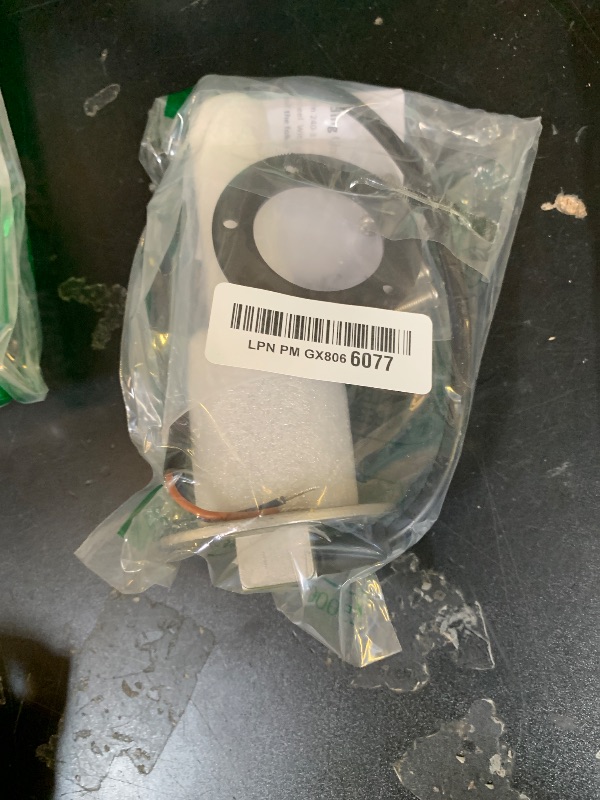

100TECH Fuel Tank Sending Unit Float Replacement 5.5"(140mm) Fuel Sender Marine Boat Diesel RV Water Level Sensor Gas Gauge Sender 240-33 ohms

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• <b> [ Direct Replacement For Swingarm Sender, Smoother Readings When In Rougher Water] </b> 100TECH Reed Switch Fuel Sender Unit is Designed Based on Magnetic Technology And Made With Series of High Quality Reed Switches & Fixed Resistors. It Does Not Require A Float On An Arm. Dramatically Reduces Slosh Fluctuations Over Swing-arm Units. No Moving Parts To Break,No Moving Parts To Break. It Moves Freely, Accurately Indicating The Fuel Level In the Tank.
• <b>[Finer Resolution］</b> The Short Tank Requires Higher Sensitivity Than The Taller Tanks Do. <b>The Resolution For the 4”,5”,5.5”,6”,7”,7.5”Of 100TECH Fuel Level Sending Unit is 10mm. They Will Provide Continuous Fuel Level Than 21mm ones do.</b>Signal Output: 240-33 ohms(240 ohms at empty,33 ohms at full).<br>The 100TECH Marine Fuel Tank Sending Unit Can Support Fuel Level Gauge and Water Tank Gauge for Boat,Truck, RV,Car etc.
• <b> ［Rugged Construction,Long Service Life］</b>The Body of 100TECH Sender Are Made From <b> 316 Stainless Steel. </b> The Benefit of using 316 Stainless Steel Include Its Corrosion Resistance And Lasting Durability For Marine Applications. You May Pay A Little More Upfront, But In The Long Run, You'll Save Money Since You Won't Have To Replace Your Sender As Frequently. You Can't Tell The Difference By Simply Looking At It. However, 304 Rusts Faster As It Has Less Nickel And No Molybdenum.
• <b>［Easy To Install,All Parts Included］</b>SAE 5 hole Mounting Pattern. The Substantial Flange Can Seal The Tank Completely. The Fuel Sender Comes with <b>1pc of NBR Gasket(1pc), 5pcs of SUS 316 M5 Mounting Screws</b>Well-written And Illustrated Instructions; The Wiring Instructions Are Straight Forward And Easy To Follow. Install Total In 15 Minutes!
• <b> ［Note］</b>: ① To Allow The Sender Not Hit The Bottom Of The Tank, The Length Of Sender Should Be 1" Less Than The Depth Of The Tank. ②The Diameter of Float is 1.38"(35mm). If You Have to Drill the hole, Diameter 1-1/2"(38mm) Hole Would be Perfect.③100TECH Sender is with Non-Linear Output, It can only match with standard gauge with Non-Linear Signal.
