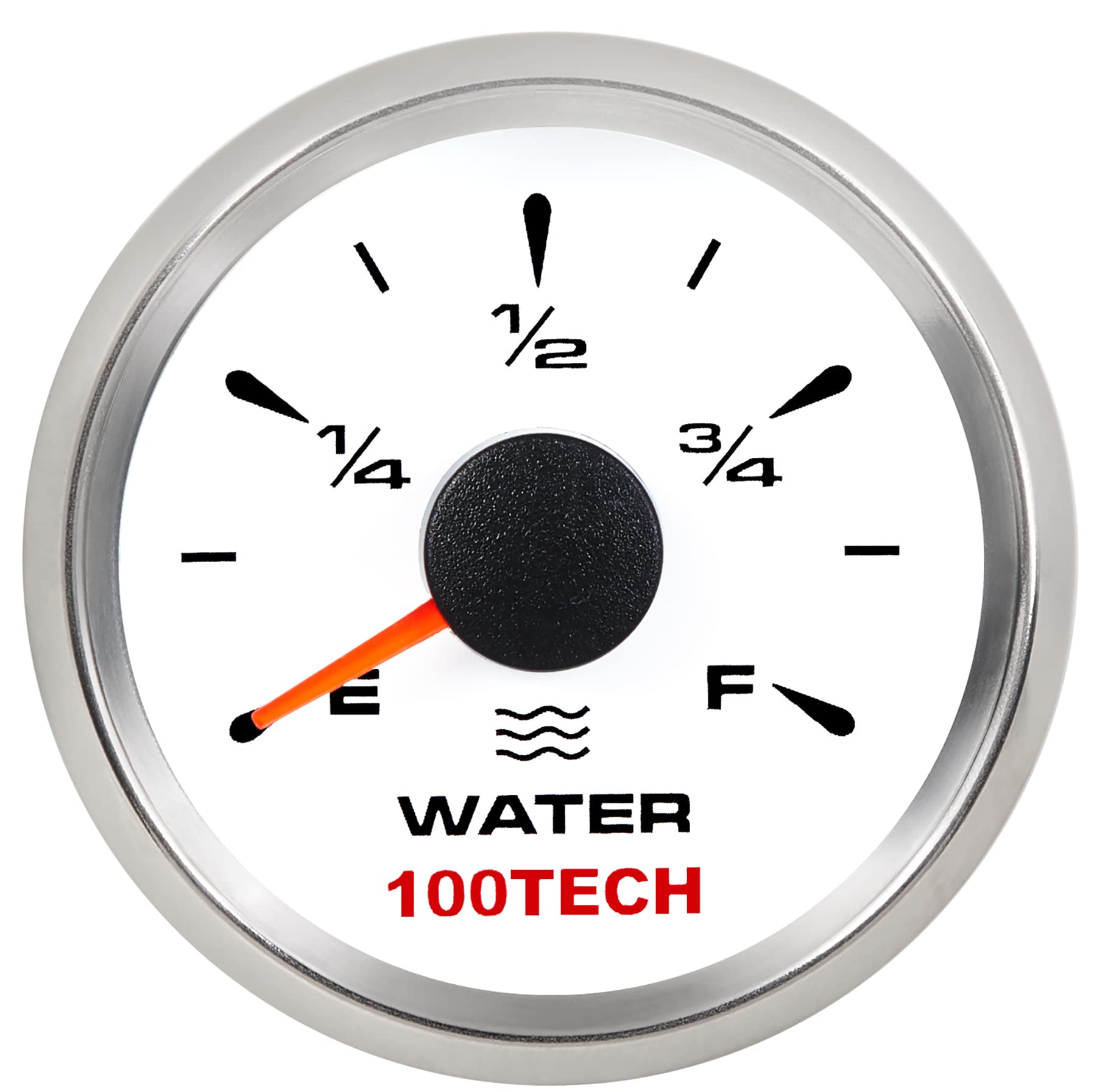

100TECH Water Level Gauge RV Truck Water Tank Gauge Marine for Boat RV 0-190ohm 240-33ohm 240-30ohm 0-180ohm 10-180ohm White

Features

• ［Easy to install and Calibrate］100TECH Boat Water Gauge is Designed for the One Who is Looking For a a Simple Solution to Measure the Amount of Water in The Tank But Un-sure of The Type Sensor That Was Installed Into Boat/Vehicles. It Can be Adjusted by Simply Pressing a Button
• ［Easily Understood Wiring Instructions］Easy-to-Read Lighted Dial, The Installation Takes less than 15 Minutes. Install diameter: Φ52mm or 2-1/16'', Indication range: E-F, Working voltage: 9-32v dc [ fit 12V-24V Vehicle or Engine].
• ［ Wide Application］Signal Input : 0-190ohm, 240-33ohm, 240-30ohm, 0-180ohm, 10-180ohm. Signal Settings: Long press the mode button for 3 seconds to enter the signal input setting mode, the backlight will begin to flash. The needle will stand at "E" position firstly,Then press the buttons one by one until you select the signal parameters that meet your needs
• ［7 Colors Selection］This Marine Water Tank Gauge Includes Red(Default), Green, Blue, White, Yellow, Yellow Green, Orange, Purple. Allow You to Match Your Factory Dashboard Lights or Add a Custom Style to the Interior of Your Boat/Vehicle
• ［Precise on Gauge Reading ,Firm Material］316 stainless steel bezel with Double Layer Reinforced Convex glass. IP67 waterproof and Dustproof Grade. Work up to 1m underwater. 100TECH Guarantees with 1 Year Limited Warranty & Free Lifetime Technical Support
• Note: 1)The Default Setting of This Water Level Gauge is 240-33ohm 2)This 100TECH Water Tank Gauge Can Only Work With The Level Sender With The Corresponding Resistive Output ：240-33ohm 0-190ohm 240-30ohm 0-180ohm 10-180ohm . The Resistance Range Can Be Adjusted By Simply Pressing A Button 3)This Boat Water Level Gauge Can Not Work With the Fuel Sending Unit with Output Signal(0-30ohm, 0-90ohm,73-10 ohm etc.)
