10PCS HK19F-DC12V-SHG DPDT 2 Form C 8-Pin PCB Mini Power Relay, HK19F-8P-12V Coil (0.2W, 720?), 1A 125VAC / 2A 30VDC, Subminiature Sealed RoHS, Through-Hole DIP, Board-Level Replacement

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

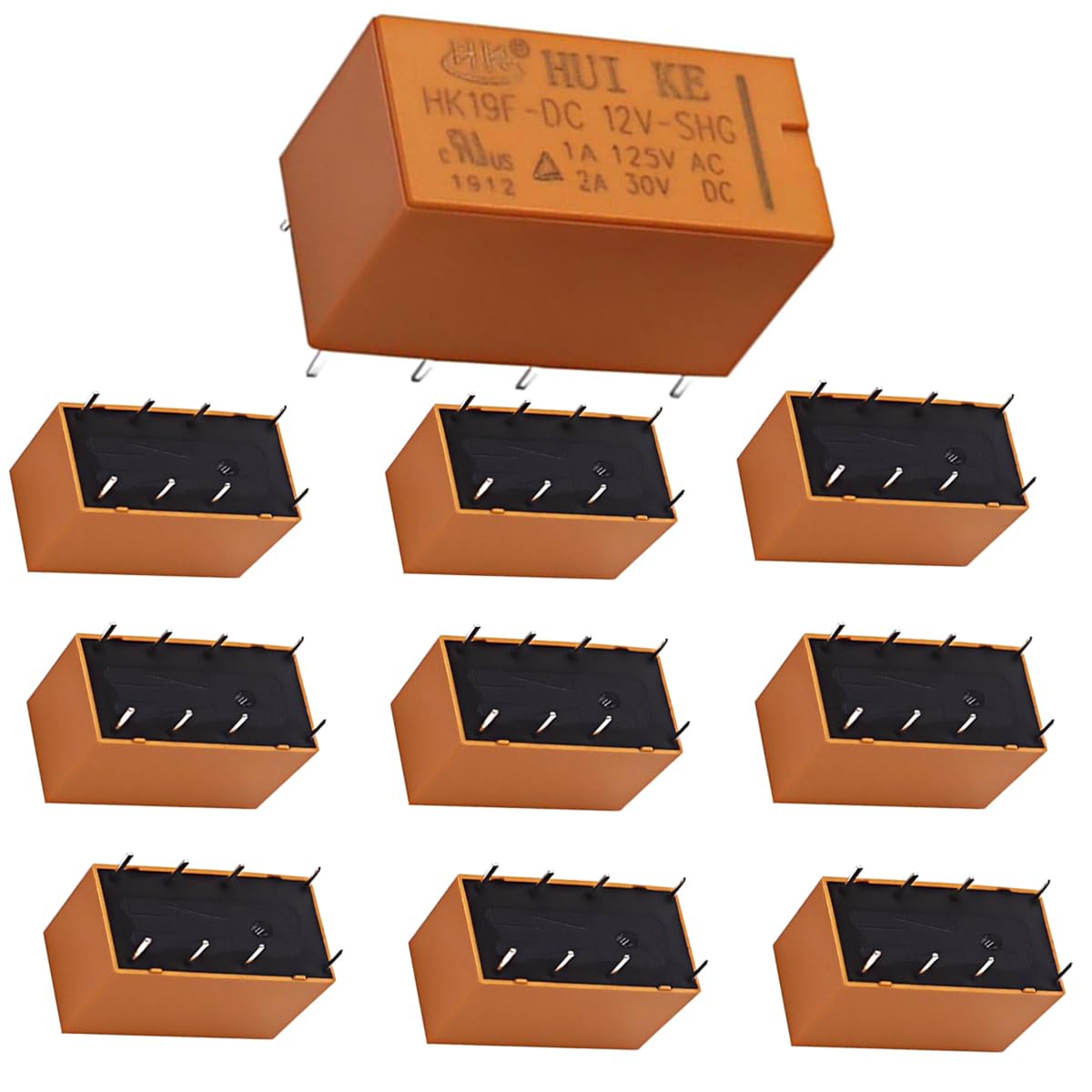

• SPECIFICATIONS & REFERENCES — Model: HK19F-DC12V-SHG; contact form: DPDT (2C); contact rating: 1A 125VAC / 2A 30VDC; coil: 12V DC, 0.2W (code H), 720Ω @20°C; operate ≤6ms, release ≤4ms; insulation 100MΩ (500VDC); dielectric 1000VAC (coil-contact) / 600VAC (contact-contact); footprint: 8-pin DIP, 20.2×10.0×12.0 mm; interchange/ref within the same code family: HK19F-12V (2C, sealed), HK19F-DC12V-S, HK19F-DC12V (RoHS code G)
• INSTALLATION & LOCATION — PCB mount, through-hole DIP (bottom-view 8-pin layout per datasheet). Use on control boards where the silkscreen/part marks “HK19F…2C.” Drive the coil from a suitable transistor/driver stage; add a flyback diode across the coil; observe the orientation notch; sealed plastic case supports wave soldering/board cleaning.
• COMPATIBILITY — Compatible with PCBs designed for the HK19F 2C 8-pin footprint and 12V-H coil; fits assemblies that specify HK19F-DC12V-SHG or the same family markings. Not compatible with plug-in blade automotive relays (30/40A ISO mini). Always match coil voltage and pinout on the original relay before ordering.
• PERFORMANCE — Silver-alloy bifurcated contacts; max switching power 125VA/60W; max switching voltage 250VAC / 125VDC; contact resistance ≤100 mΩ (at 1A 6VDC); mechanical life 10,000,000 ops; electrical life 100,000 ops (resistive load); operating temp −30°C to +70°C; vibration 10–55 Hz/1.5 mm; shock 10 g functional.
• TYPICAL USES — Low-power switching in security, instrumentation, smart-home, vending/industrial boards, audio/test jigs, and other 12V control circuits; suitable for small loads within rating (≤2A @30VDC). (Select contact protection for inductive loads.)
• COMPLEMENTARY ITEMS — Compatible with same-footprint coil-voltage variants when the design requires them: HK19F-DC5V-SHG, HK19F-DC24V-SHG; pairs with 8-pin DIP relay sockets/adapters, driver modules, and flyback diodes. Match footprint + coil code for drop-in replacement.
• COMPLIANCE & HANDLING NOTES — Plastic-sealed type (code S) and RoHS (code G); epoxy-sealed for wave soldering/cleaning; do not ultrasonically clean; allow cooling below 40 °C before washing; avoid strong magnetic fields. Verify board space and clearance: ~20.2×10.0×12.0 mm, ~5 g.
