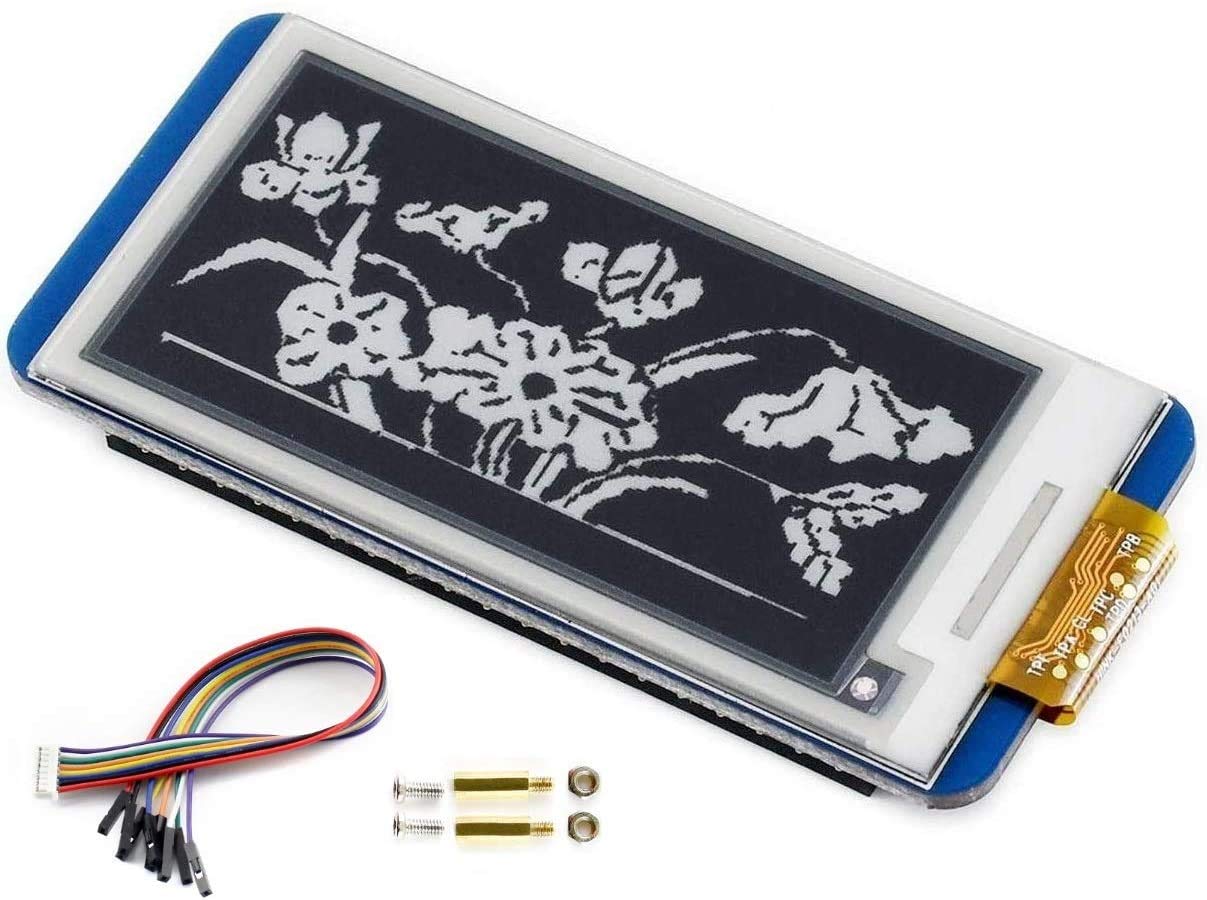

2.13inch E-Ink Display HAT V4 Version, 250x122 Resolution 3.3V/5V Black White Two-Color e-paper Screen Module for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B, Supports Partial Refresh, SPI Interface

250x122, 2.13inch E-Ink display HAT V4 Version for Raspberry Pi,Jetson Nano,SPI interface Overview This is an E-Ink display HAT V4 Version for Raspberry Pi,Jetson Nano, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Specifications Operating voltage: 3.3V/5V Interface: SPI Outline dimension: 65mm × 30.2mm Display size: 23.71mm × 48.55mm Dot pitch: 0.194 × 0.194 Resolution: 250 × 122 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170° Interface VCC---3.3V GND---GND DIN---SPI MOSI CLK---SPI SCK CS---SPI chip select (Low active) DC---Data/Command control pin (High for data, and low for command) RST---External reset pin (Low for reset) BUSY---Busy state output pin (Low for busy) Package Content 2.13inch e-Paper HAT x1 RPi screws pack (2pcs) x1 PH2.0 20cm 8Pin x1 Note: Online development resources are provided ,please contact us to get if needed!
