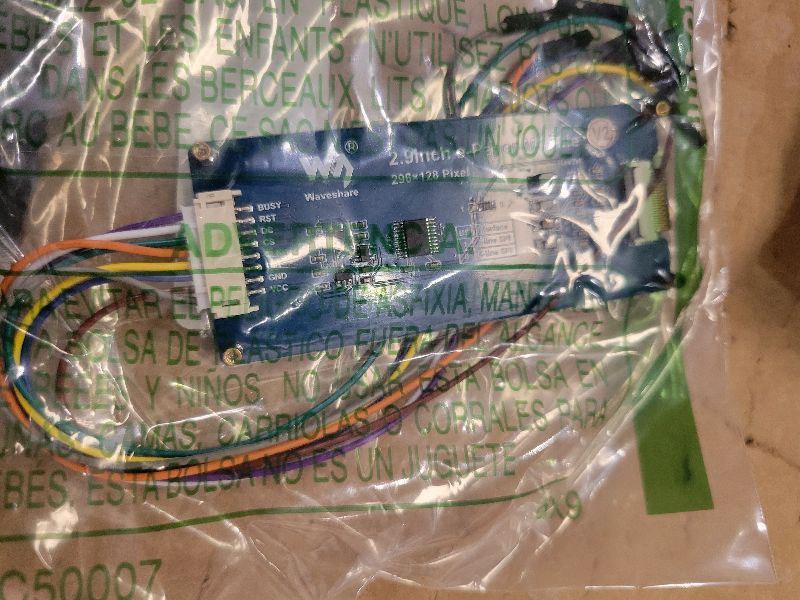

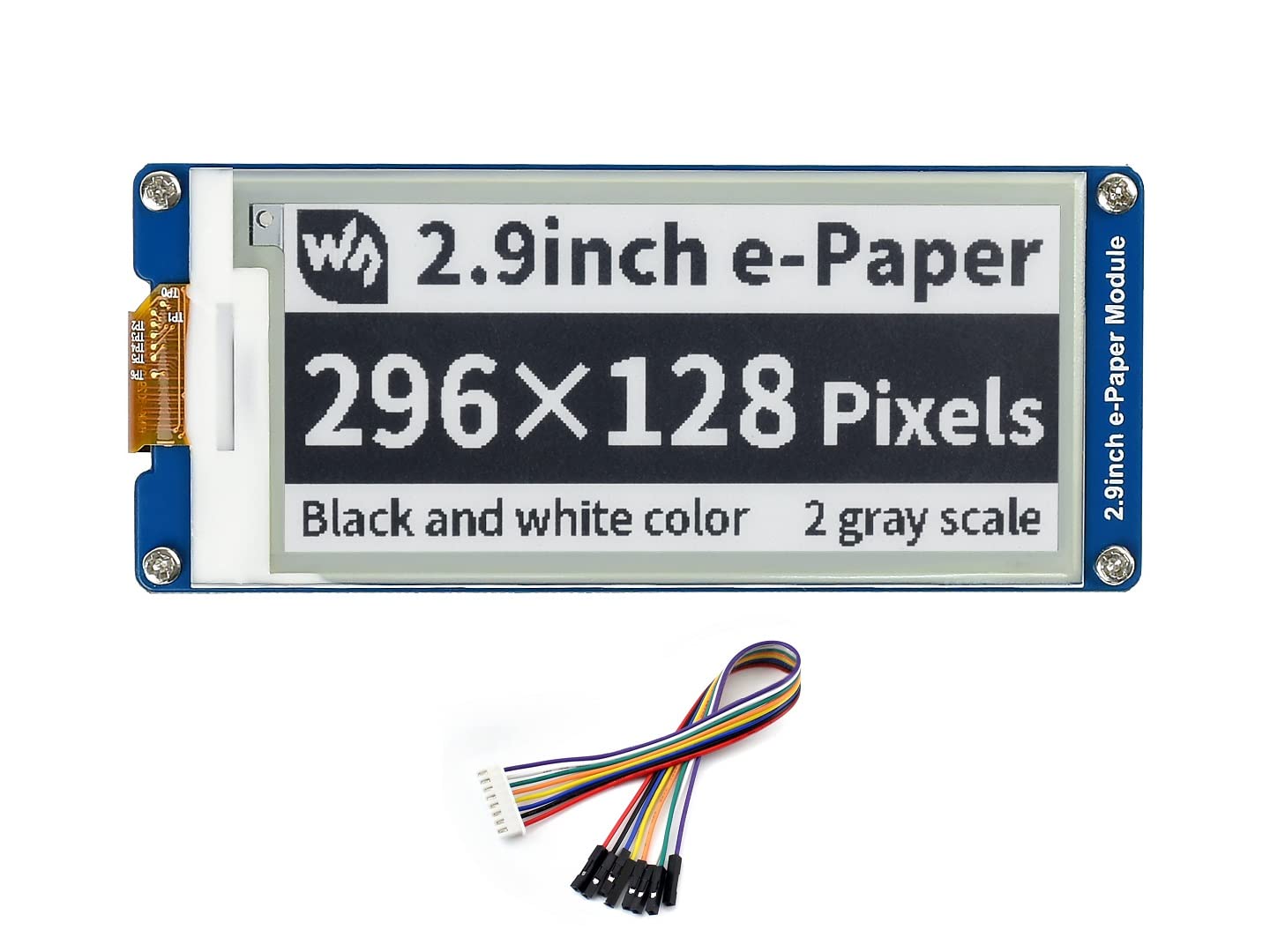

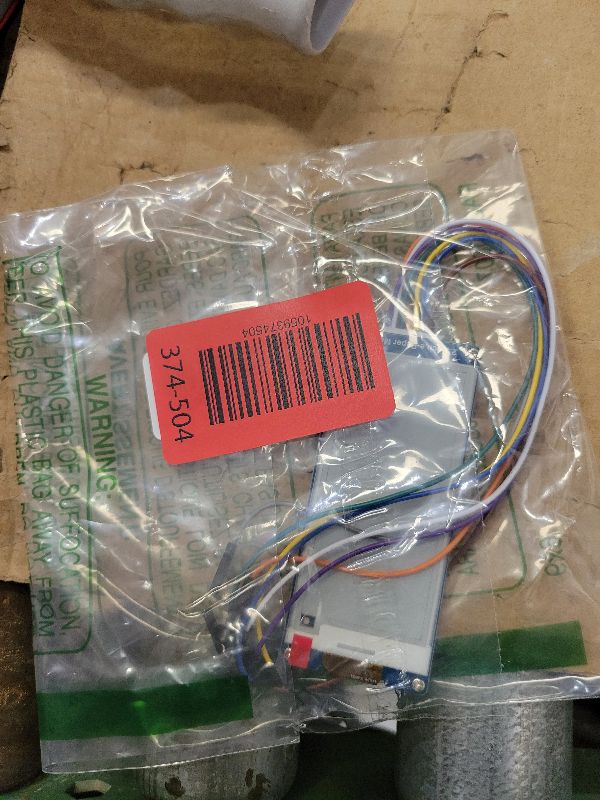

2.9inch e-Paper Display Module, 296x128 Resolution 3.3V/5V Two-Color epaper Display E-Ink Screen Module SPI Interface Compatible with Raspberry Pi/Arduino/Jetson Nano,Support Partial Refresh

Overview This is an 2.9inch E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Specifications Operating voltage: 3.3V/5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 89.5mm × 38mm Display size: 66.89mm × 29.05mm Dot pitch: 0.138 × 0.138 Resolution: 296 × 128 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power:＜0.017mW Viewing angle: ＞170° Interfaces VCC-3.3V GND-GND DIN-SPI MOSI CLK-SPI SCK CS-SPI chip select (Low active) DC-Data/Command control pin (High for data, and low for command) RST-External reset pin (Low for reset) BUSY-Busy state output pin (High for busy) Package Content 2.9inch e-Paper Module x1 PH2.0 20cm 8Pin x1 Note:Online development resources and technical support are provided, pleae contact with us to get if you need.
