20Pcs Miniature Power Relay DC24V HF41F/24-ZS 1NO 1NC 6A SPDT with LED Indicator with Socket Base 41F-1Z-C2 with DIN Rail UL Certification

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
• Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Coil Voltage:AC/DC 24V; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.
• 24V Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
• Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :140mm (5.51").

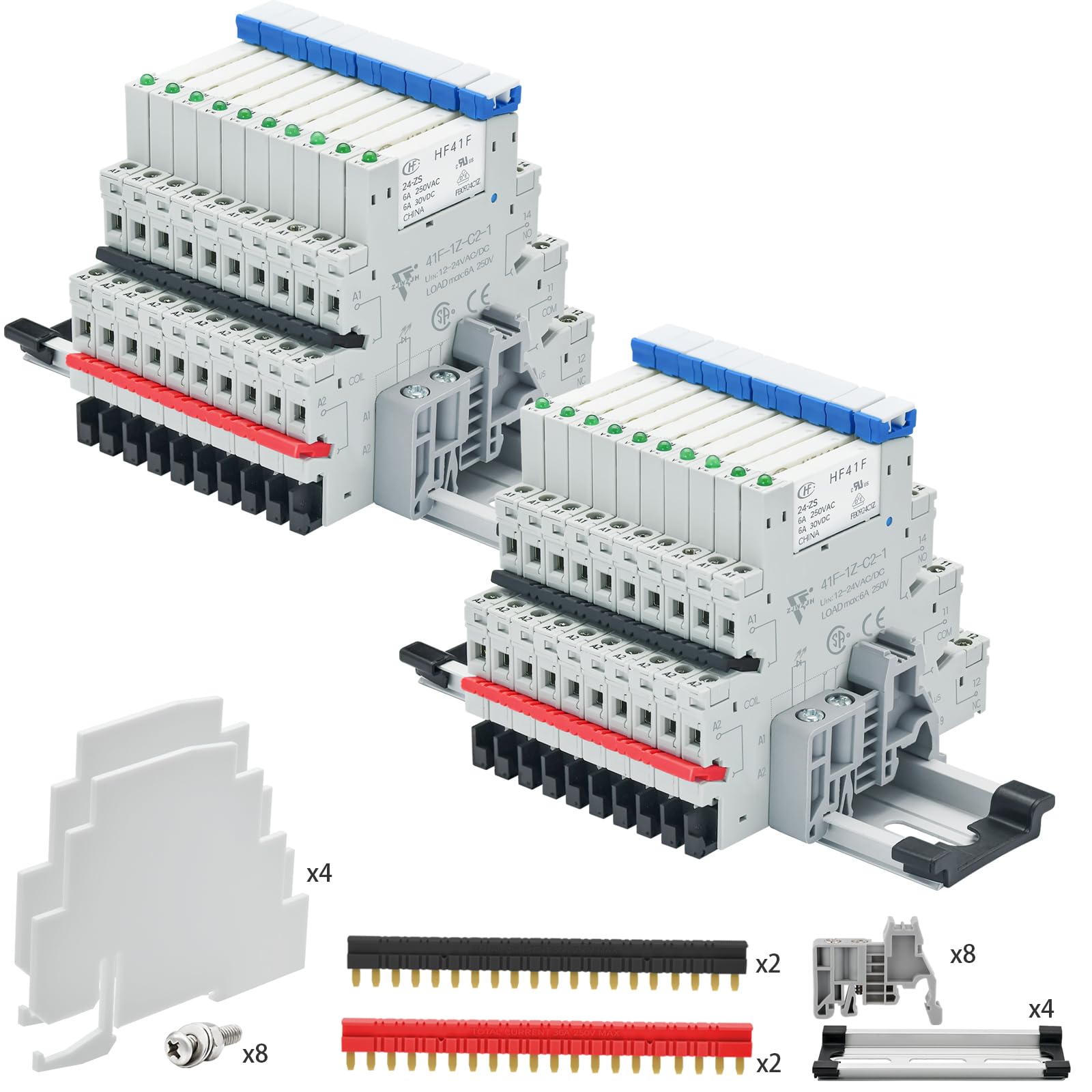

• 【Package】Package Content : 20× Power Relay and Socket Base; 4x DIN Rail; 4×Jumper; 8×Fixing Clip; 4×Separator; 8×Screw. Ambient temperature: -40℃ ~ 70℃.
