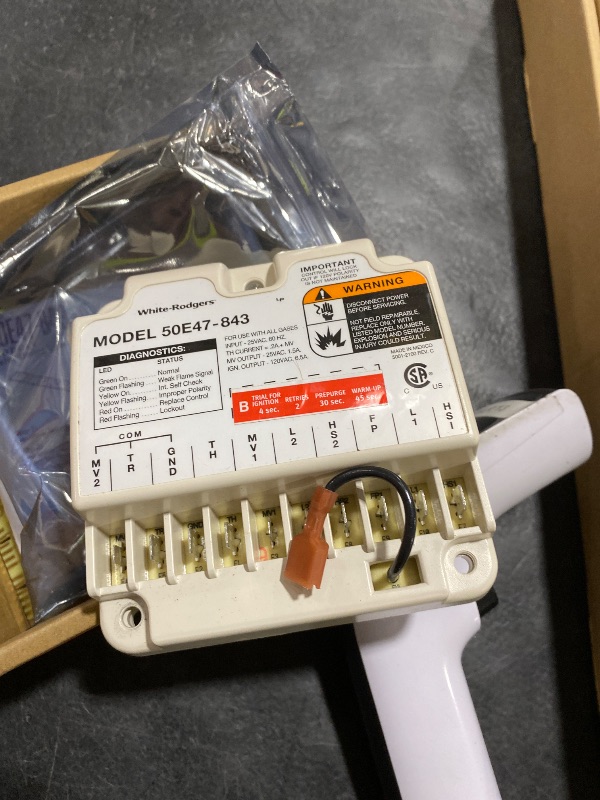

50E47-843 Ignition Control, Universal Hot Surface, Compatible with White Rodgers, Honeywell, Robertshaw HSI Modules, Programmable Timing, LED Diagnostic

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• Universal Replacement: Designed as a direct replacement for 50E47-843 and compatible with many White-Rodgers, Honeywell S89/S890, and Robertshaw HS780 hot surface ignition systems. Features programmable trial for ignition time, retries, pre-purge, and igniter warm-up via six color-coded program keys
• Programmable Timing: Includes six program keys (blue, red, green, violet, orange, yellow) to select ignition trial times (4 or 7 seconds), retries (0 or 2), pre-purge (30 sec), and igniter warm-up (45 or 17 sec). Jumper selectable for direct sense (through ignitor) or indirect sense (using flame sensor)
• LED Diagnostics: Built-in red LED provides quick troubleshooting: 1 flash = retries exceeded (lockout), 2 flashes = recycles exceeded (lockout), continuous red = internal fault or miswired gas valve. Helps HVAC technicians identify issues without additional tools
• Robust Electrical Ratings: Input voltage: 18 to 30 VAC 60 Hz, 0.2 amp. Valve relay: 1.5 amp at 25 VAC, ignitor relay: 6.0 amp at 120 VAC (resistive). Minimum flame current for detection: 2 μA DC, maximum non-detection: 0.2 μA DC. Ambient temperature range: -40°F to 175°F (-40°C to 80°C), 95% non-condensing humidity
• Easy Installation: Mounts on any surface or 4"x4" junction box. Includes adapter cables and quick-connect terminals for common replacements. UL approved 105°C wire recommended. Follow included wiring cross reference for Honeywell, Robertshaw, and White-Rodgers terminals. Disconnect power before installation
