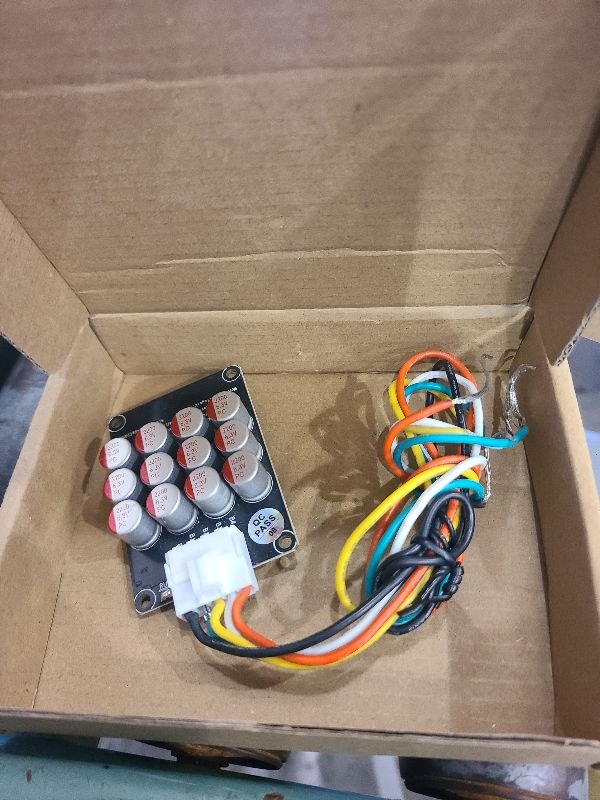

5A 3S 4S 12V Battery Active Equalizer Whole Group Balancer LiFePO4 LFP Lipo Li-ion Lithium Active Battery Energy Transfer Equalization Capacitor Balancer PCB Module with Acrylic Protective Case

Features

• Working Voltage: 2.7V-4.2V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4). It can Not fit LTO battery. If it is used for 3S, the last line B4+ is empty. (Note: The default protective case is a kit, not assembled, the transparent acrylic case has a yellow protective film that can be peeled off. )
• Working Principle: Flying capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, balance current 0-5.5A, the more balanced the battery current is Small, reserved for the dormant switch wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!
• The quiescent current is about 12mA, and the battery capacity is recommended to be used between 30-300AH!
• With under-voltage sleep protection, only detecting the battery voltage of B1, the equalizer will automatically stop entering the sleep state when the B1 voltage is lower than 2.7V, and the standby power consumption is less than 0.1mA.
• Attention: Before connect the balance cable to the balance board, be sure to check whether the connections of each section of the battery pack are correct, and do a good job of insulating the bottom of the board and the battery string connection terminals. Otherwise, it will short-circuit and burn the board.
