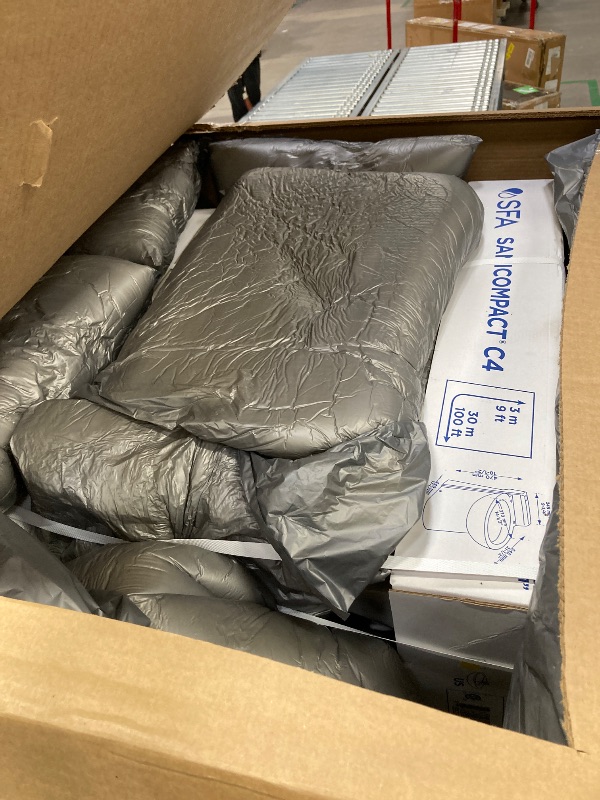

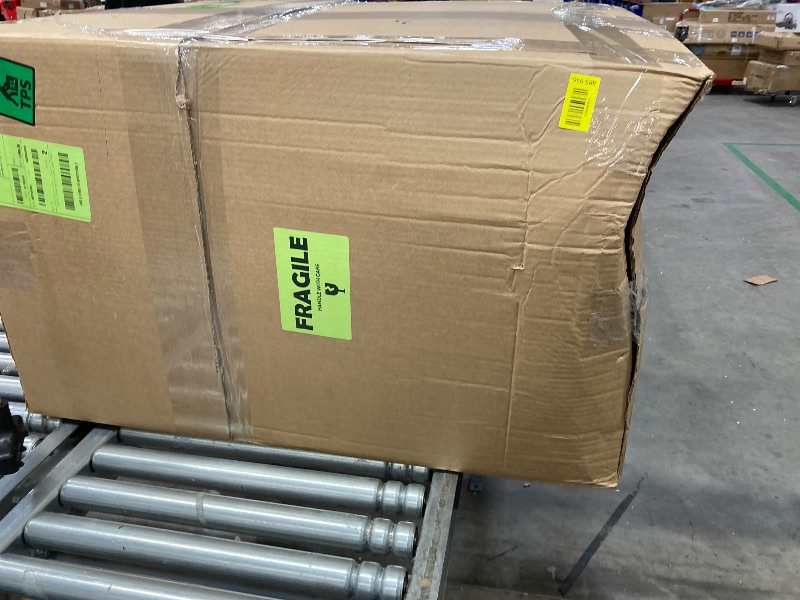

******FACTORY SEALED******** Saniflo 023 Sanicompact Self-Contained Toilet

The SaniCompact is a self-contained system that is used to install a half-bathroom up to 9 ft. below the sewer line, or even up to 120 ft. away from a soil stack. The SaniCompact can handle the effluent from a toilet and sink for residential applications. The SaniCompact is a combination of a vitreous China toilet bowl and macerator/pump built into 1 compact unit. This modern shaped self-contained China toilet is especially designed with several ideas in mind: For situations where there is not enough space. As a toilet that uses a minimum amount of water. As a toilet for use with people that have physical limitations. The SaniCompact needs no gravity flow tank as the flushing action and macerating pump cycle is automatic after pressing a push button on top of the bowl. The flushing mechanism is electrically timed to allow water to pass through the toilet. By pressing the push button, this activates a timer and a solenoid valve in order to fill and wash the sides of the bowl. The motor starts and the waste and paper are sucked inside where it is macerated and pumped away. The motor stops after approximately 10 to 15 seconds and the timer programs the refill of the bowl with fresh water. The standard dual flush version uses 1.28 GPF (4.8 LPF) and 1 GPF (3.8 LPF).. The SANICOMPACT is a self-contained toilet that's ideal for fitting into tight spots where conventional toilets can't fit. This modern shaped self-contained macerating toilet is very water efficient, using just one gallon of water per flush. It was designed with several purposes in mind such as limited space, green conscious users that want to save water, and for people with physical limitations requiring easy access to a toilet. The SANICOMPACT can be installed in many locations such as a loft/attic, upper floor, ground floor, basement and even a garage. It's very easy to install in areas such as under the stairway for a half bathroom or an additional half bathroom in a bedroom or garage conversion. It can handle the effluent from a toilet and sink. It needs no toilet tank as the flushing action and macerating pump cycle is automatic after pressing a push bottom (air switch) on top of the bowl. The flushing mechanism is electronically timed to allow approximately 1-Gallon of water to pass through the toilet. The discharge elbow on the back of the SANICOMPACT can be rotated 360 Degree to fit any type of installation requirement. A non-return valve, which comes already assembled on the discharge elbow, prevents back flow into the unit. The SANICOMPACT is a forced main and does not need to be vented and connected to a vent stack. Other fixtures may need to be vented as per local plumbing codes. It is also highly recommended for the macerator/pump to be connected to a Ground Fault Interrupter circuit. Remove the bowl and then mark the position of the fixing brackets inch inside the traced

The SANICOMPACT is a self-contained toilet that's ideal for fitting into tight spots where conventional toilets can't fit. This modern shaped self-contained macerating toilet is very water efficient, using just one gallon of water per flush. It was designed with several purposes in mind such as limited space, green conscious users that want to save water, and for people with physical limitations requiring easy access to a toilet. The SANICOMPACT can be installed in many locations such as a loft/attic, upper floor, ground floor, basement and even a garage. It's very easy to install in areas such as under the stairway for a half bathroom or an additional half bathroom in a bedroom or garage conversion. It can handle the effluent from a toilet and sink. It needs no toilet tank as the flushing action and macerating pump cycle is automatic after pressing a push bottom (air switch) on top of the bowl. The flushing mechanism is electronically timed to allow approximately 1-Gallon of water to pass through the toilet. The discharge elbow on the back of the SANICOMPACT can be rotated 360 Degree to fit any type of installation requirement. A non-return valve, which comes already assembled on the discharge elbow, prevents back flow into the unit. The SANICOMPACT is a forced main and does not need to be vented and connected to a vent stack. Other fixtures may need to be vented as per local plumbing codes. It is also highly recommended for the macerator/pump to be connected to a Ground Fault Interrupter circuit. Remove the bowl and then mark the position of the fixing brackets inch inside the traced
