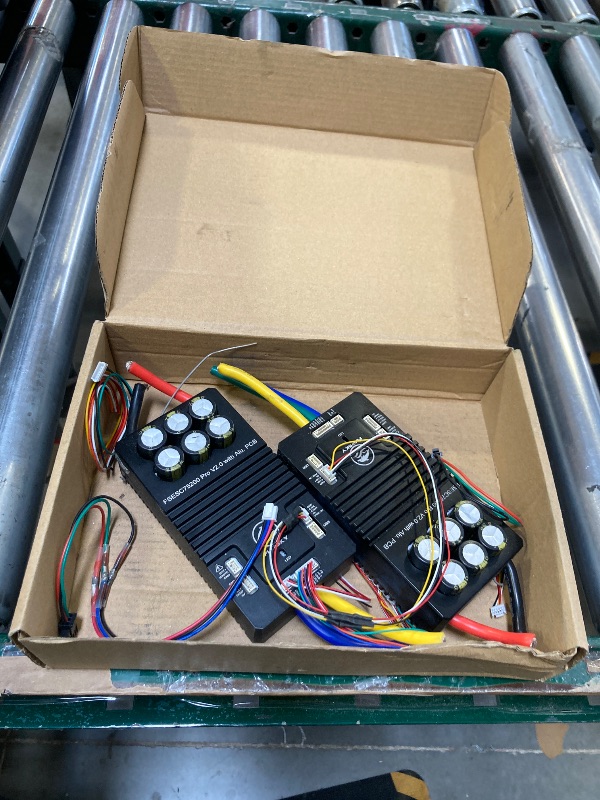

FLIPSKY 75200 Pro V2.0 with Aluminum PCB with Power Button Based on VESC for Electric Skateboard/Scooter/Ebike Speed Controller

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 75200 pro v2.0 is an ESC controller, which can be used for electric skateboards/scooters/electric bicycles/robots/DIY off-road vehicles/combat off-road vehicles, etc.
• The ESC is the Benjamin ESC series. Please use the VESC TOOL tool to adjust the parameters before use. The factory version firmware is 6.02. If you need other versions, please go to the VESC tool software (Firmware) and select the corresponding version. The version cannot be used incorrectly. Different firmwares may cause differences in parameters; otherwise, it may easily cause damage to the ESC parameters.
• PLS note:Except for Apple computers, other computer firmware can be downloaded from our official website. Apple computers can only be purchased on Apple.Please strictly refer to the instructions and wiring diagram to ensure the safe use of the product.
• When you just connect the controller, pay attention. If the versions are inconsistent, the page will pop up. If they are inconsistent, you need to change them to be consistent before adjusting the parameters.
• Voltage range: 14-84V (safe within 4-20S). Do not exceed the voltage range, which may cause the ESC to burn out.Continuous current:50v/200A: 75V/150A(Values depend on the mounting,abbient temperature and air/water circulation around the device!)
• Continuous current: 50V/200A; 75V/150A (the duration depends on the external heat dissipation); the current at the motor and bus battery end cannot exceed 200A.
• BEC: 5V@1A, 5V output current, the receiver cannot exceed 1A.Instant current: 400A (just a moment),With relative filtering.
• Please connect according to the wiring diagram, and pay special attention to 3.3V and 5V. Do not short-circuit. Note: When using any throttle handle, under ADC control, make sure that the positive pole of the power supply is connected to 3.3V, not 5V.
• Warm reminder: The ESC seat is easy to fall off, please do not be too violent when using it.The battery and motor ports must be welded firmly
• You can refer to the video. If you still don’t understand, you can contact us to send relevant videos.
