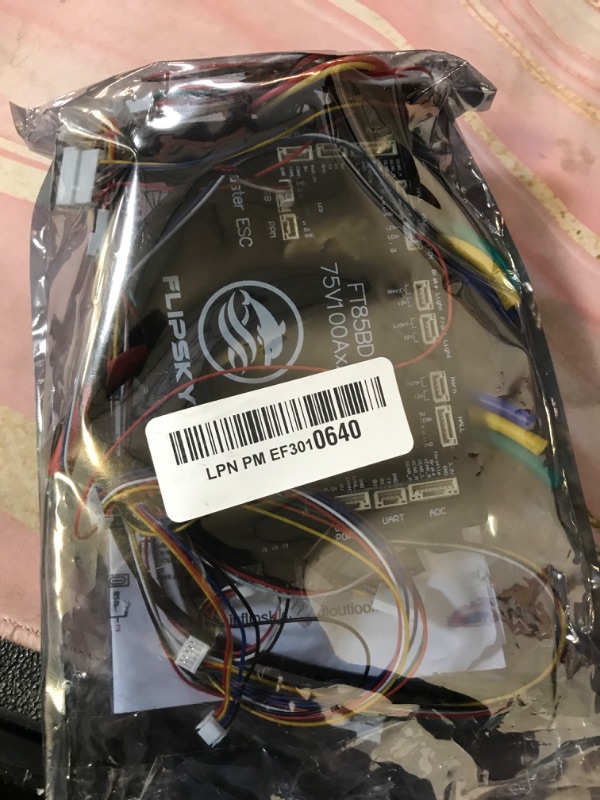

FLIPSKY FT85BD Dual ESC 84V 200A with Aluminum Case Non-VESC for Electric Skateboard/Scooter/Ebike Speed Controller/Electric Motorcycle/Robotics

Note: USB cable black or white will be shipped randomly. Specifications : Firmware: V1.2 (firmware update via Flipsky ESC Tool supported) Voltage: 14-84V (safe for 4S-20S) Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting and ambient temperature around the device!) Peak Current: 250A / Single; 500A / Dual Communication Ports: USB, CAN, UART, PPM, ADC Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present) Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored) BEC: 5V@1A Multiple Speed Gear levels: Low, Medium, High, Reverse Front Lights, Rear Brake Lights & Horn: Support Programmable: Yes Regenerative Capacity: Yes Slide Poweron & Auto shutdown: Yes Self-resetting switch with green LED button Diameter: 16mm Power Wire Size: 10AWG; Motor Wire Size: 12 AWG Size: L132*W81*H26.5mm(Including Alu. Case) Features: 1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed. 2.240MHz and the max PWM switching frequency 45KHz improves the motor RPM. 3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways. 4.Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above). 5.Supporting motor FOC with low working noise and smooth starting. 6.Supporting Real-time data and fault alerts. 7.Supporting adaptive variable PWM frequency control. 8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI). 9.Supporting control types: Current, Duty Cycle 10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection. 11.Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL. 12.Supporting extra interface like front lights, rear brake lights and horn fixtures.
