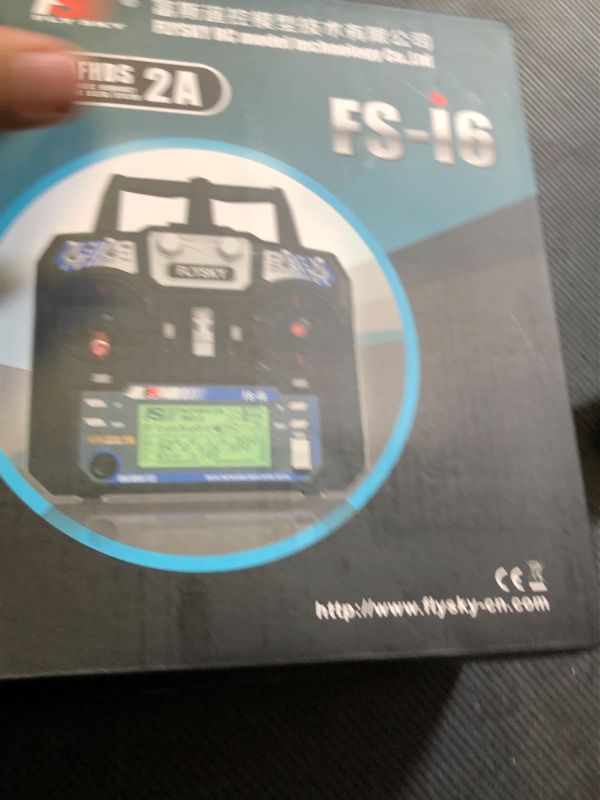

FLYSKY FS-i6 6CH 2.4GHz Radio System RC Transmitter Controller w/FS-iA6 Receiver for RC Helicopter Plane Quadcopter Glide (Mode_2)

Please note:the FLYSKY FS-I6 is Left hand throttle(Mode 2), the throttle stick will not return to the center up and down. The transmitter and receiver have been pre-bound before delivery.If you are using another transmitter or receiver, follow the steps below to bind to the B/VCC port on the receiver. 1, Connect the supplied bind cable to the B/VCC port on the receiver. 2, Insert power into any other port. 3, Hold the "BIND KEY" while powering on the transmitter to enter bind mode. 4, Remove the power and bind cable from the receiver. Then connect the power cable to the B/VCC port. 5, Check the servos' operation. If anything does not work as expected, restart this procedure from the beginning. FS-i6 Specifications: Channels: 6 Model Type: Glider/Heli/Airplane RF Range: 2.40-2.48GHz brandwidth: 500KHz brand: 142 RF Power: Less Than 20dBm 2.4ghz System: AFHDS 2A and AFHDS Code Type: GFSK Sensitivity: 1024 Low Voltage Warning: less than 4.2V DSC Port: PS2;Output:PPM Charger Port: No ANT length: 26mm*2(dual antenna) Transmitter Weight: 392g Transmitter Size: 174x89x190mm Package Size: 23.5x21.2x10.6cm Package Weight: 676g Power: 6V, 4*AA Battery(Not included) Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight. On-line update:yes Certificate: CE0678,FCC Model Memories: 20 Control Range: 500m FS-iA6 Specifications: Channels: 6 Frequency Range :2.4-2.48 GHz Number of Band: 140 Transmitting Power: not more than 20dBm Receiver Sensitivity:-105dBm 2.4G modes: Automatic frequency second generation digital systems Encoding: GFSK Weight: 6.4g Input Power :4.0-6.5V DC Dimensions: 40.4x21.1x7.35 mm Color: Black i-BUS Interface: No Data Acquisition Interface: No Certification: CE0678,FCC Usage: Suitable for RC Airplane/glider/helicopter Compatible Transmitter: Flysky FS-i6,FS-I6X,FS-I6S Package Included: 1 x FS-i6 transmitter 1 x FS-iA6 Receiver 1 x Manual
