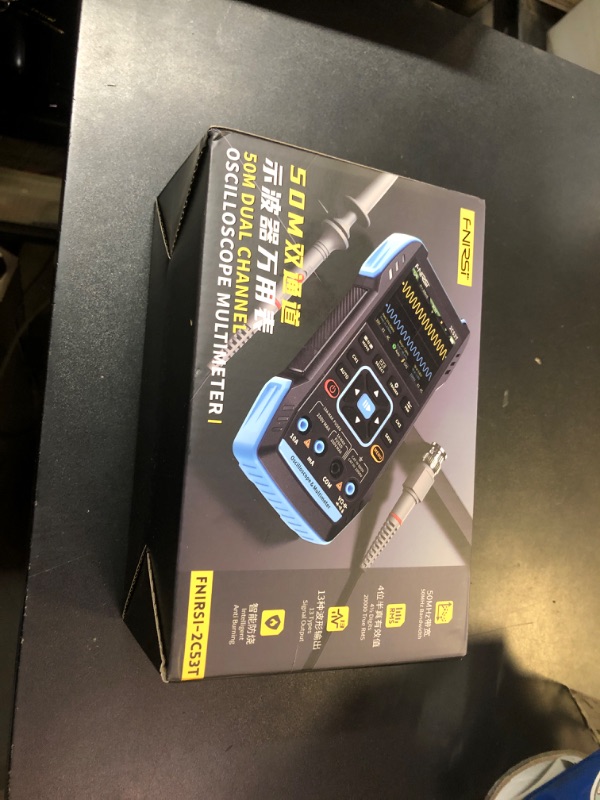

?FNRSI Upgraded 2C53T with 2 P6100 Probe? 3In1 Oscilloscope/Multimeter/DDS Signal Generator 50MHz Bandwidth 250MS Sampling Rate 20000 Count RMS for Voltage, Current, Capacitor, Resistor, Diode

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【LATEST VERSION OF FNIRSI FAMILY】Among all the combined 3in1 oscilloscopes of FNIRSI family, the 2C53T is the newest and most advanced version. It has upgraded from 2C23t and has not only improved its bandwith from 10Mhz to 50Mhz, but also improved the sampling rate from 50MS/s to 250MS/s.
• 【DUAL CHANNEL OSCILLOSCOPE MODE】50 MHz bandwidth, 250 MSa/s sampling rate, 1 Kpts record depth, automatic measurement function, vertical sensitivity 10mV/div-10V/div. The FNIRSI 2C53T supports peak voltage measurements up to ±400V and also supports waveform image storage and export.
• 【4.5-Digit 19999 COUNTS DIGITAL MULTIMETER MODE】The multimeter mode is good enough for professionals. It offers 4.5 digits with 19999 counts true RMS, supporting AC/DC voltage and current measurements, as well as capacitance, resistance, diode, and continuity measurements. AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-19.99 MΩ, Capacitance: 0-99.99 mF.
• 【DDS SIGNAL GENERATOR MODE】 The built-in DDS function signal generator can output 13 types of function signals, with a maximum output frequency of 50KHz and a step size of 1Hz. The output frequency, amplitude, and duty cycle are adjustable. It supports advanced functions such as XY mode, cursor measurement, persistence measurement, mathematical operations, etc., making it easy to capture abnormal signals.
• 【EXQUISITE DESIGN WITH LARGE CAPACITY BATTERY】The 2C53T adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000mAh battery. It can be used for 6 hours after fully charged.
