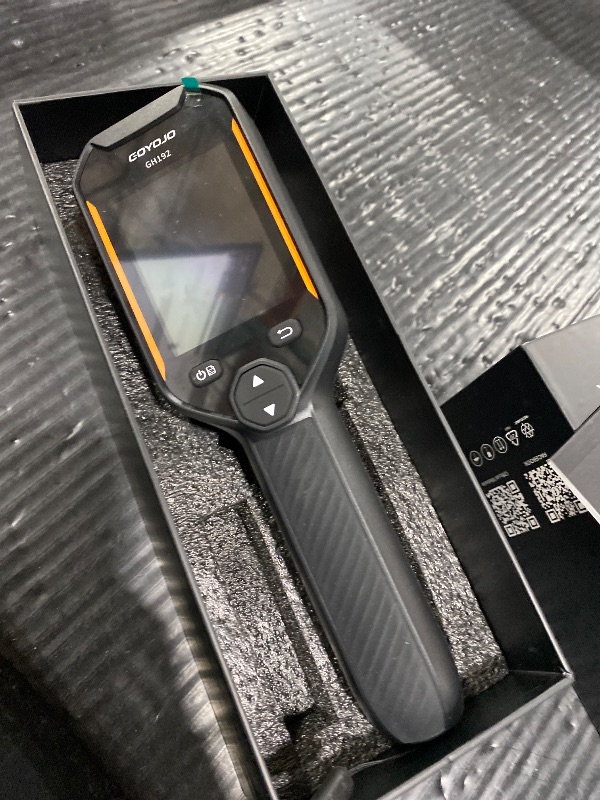

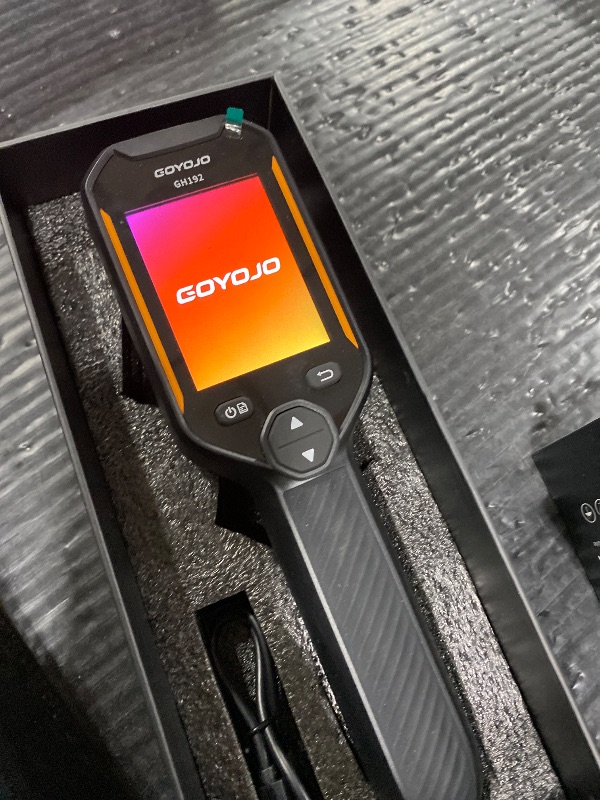

GH192 Thermal Imaging Camera 240X240 Super IR Resolution with 2MP Visual Camera and Fusion Imaging, 25Hz Handheld Thermal Imager with Alarm for Mechanical Maintenance Home HVAC Electrical Inspection

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• Dual Light Fusion Imaging: GH192 240x240 Thermal Imager is equipped with a 2MP visible light camera and an infrared camera,Instantly outlines target objects upon activation, a 2.8" 240×320 IPS display, and a 25Hz frame refresh rate. It enables inspections with faster response and more detailed results. [Note：Enable in settings before exporting images "File Transfer"]
• Auto Temperature Tracking + Temperature Alarm: This thermal imager automatically captures center point temperature and locks onto high/low temperatures, featuring 3-point heat tracking (target temp, minimum temp, maximum temp) within a range of -4°F to 1022°F, allowing key thermal data to be accessible. High-temperature and low-temperature alarms: When any target on the viewing interface meets the alarm criteria, a clear alert appears at the top of the screen, aiding in the identification of temperature abnormalities during inspections.
• 3 Image Modes And 6 Color Palettes: This thermal imager offers 3 image modes — Fusion, Thermal, and Conventional Light — along with 6 adjustable color palettes. The available color scales include White Hot, Black Hot, Iron Red, Rainbow, Red Hot, and Fusion, allowing selection based on specific work needs. These palettes enable flexible choice of the most suitable option for different detection scenarios and objectives, facilitating clear, targeted results.
• Durable & Portable Design: 8H runtime, USB-C charging; 6.6ft drop-resistant & IP54 rated Adjust emissivity for different materials to get accurate temp readings every time for tough use.
• Professional-Grade Accuracy For Versatile Inspections: This thermal imager offers a precision of ±2°C. It allows adjustment of emissivity based on specific materials (such as wood, bricks) and modification of object distance to help ensure accurate temperature readings across surfaces. It can be used for scenarios including home inspections (missing insulation, underfloor heating, water pipes), facility maintenance, HVAC troubleshooting, and checks of electrical, PCB, and mechanical systems.
