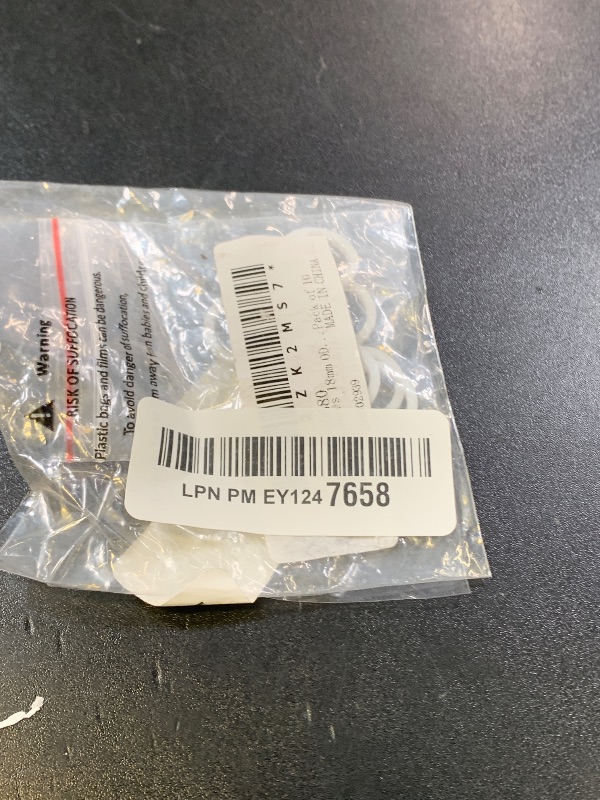

MECCANIXITY PTFE Flat Washers 18mm OD 14mm ID 2mm Thick Flange Gasket, White Pack of 10

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• With excellent corrosion resistance, good self-lubrication, non-conductive, and non-adhesion, has wear resistance, pressure resistance, high voltage resistance, and low friction coefficient
• 18mm / 0.7" O.D. x 14mm / 0.55" I.D. x 2mm / 0.08" Thick; Working Temperature Range: -200°C to 250°C (-328°F to 482°F)
• Draw rate: 193%; Density: 2.19g/cm³; Dynamic Friction Factor: 0.06; Dielectric Strength: 15KV/mm; Tensile Strength: 19.5Mpa; Compressive Strength: 12Mpa
• The 50A hardness sealing gasket provides a bearing surface for fastener load distribution or is used as a spacer between components
• Mainly used as electrical insulation materials and linings to contact with corrosive media, supporting sliders, guide rail seals, and lubricating materials. Widely applied in the flange sealing of chemical industry, metallurgy, machinery, electronics, electrical appliances, construction, etc.
