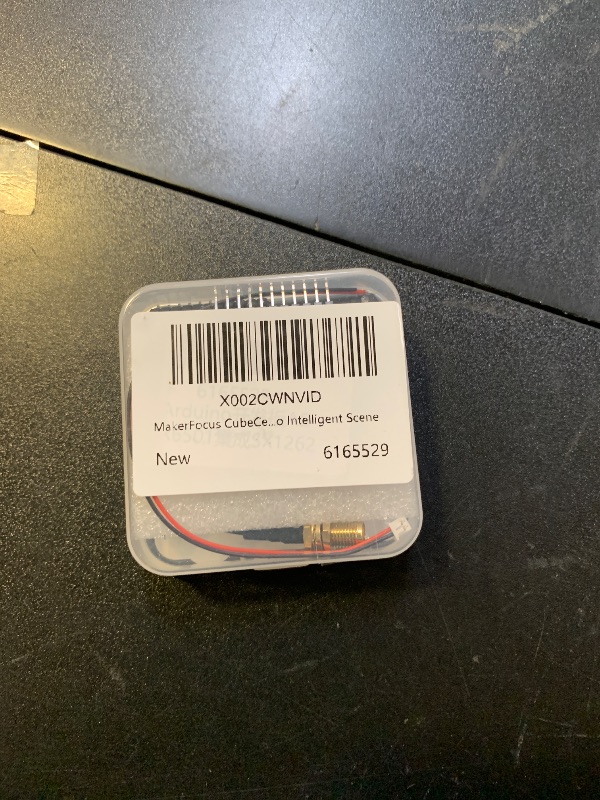

MakerFocus CubeCell Dev-Board Supports Solar Energy Powered, ASR6502 MCU SX1262 LoRa Ultra Low Power Consumption Development Board with 915MHz Antenna Compatible with Arduino

CubeCell – Dev-Board is mainly for LoRa/LoRaWAN node applications CubeCell – Dev-Board is based on ASR6052, the chip is already integrated with the P SoC 4000 series MCU and SX1262. We have done a lot of migration and development, made it perfectly support Ar duino, can run the LoRaWAN protocol stably and can easily connect lithium batteries and solar panels Features: Perfect Ar duino compatible LoRaWAN 1.0.2 support Ultra low power design, 3.5uA in deep sleep Onboard solar energy management system, can directly connect with a 5.5~7V solar panel Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching) Type-C interface with complete ESD protection, short circuit protection, RF shielding and other protection measures Integrated CP 2102 USB to serial port chip, convenient for program downloading, debugging information printing Good impedance matching and long communication distance Parameter: Master Chip: ASR6502 Lora Chipset: SX1262 Max Tx Power: 21±1dbm Receiving Sensitivity: -139dbm USB to Serial Chip: CP2102 Hardware Resource: 1*SPI; 1*I2c; 1*Uart; 1*12-Bit ADA; 1*SWD; 8*GPIO; 2*PWM; 8-Channel DMA Engine Memory: 128kbites Flash; 16kbites SRAM Interface: Type-C USB; LoRa Ant (IPEX 1.0); SH1.25; 2*2.54*11 Pin Header; 1*2.54*2 Pin Header Battery: 3.7v Lithium Battery Power Supply and Charging Solar Energy: VS Pin Can be Connected To 5.5 ~ 7V Solar Panel Power Consumption: Deep Sleep 3.5uA Operating Temperature: -20~70℃ Dimensions: 40.64 * 22.86 * 7.6 mm Package Content: 1 * CubeCell Dev-Board 1 * Antenna 2 * Pin Headers 1 * Battery Power Cord
