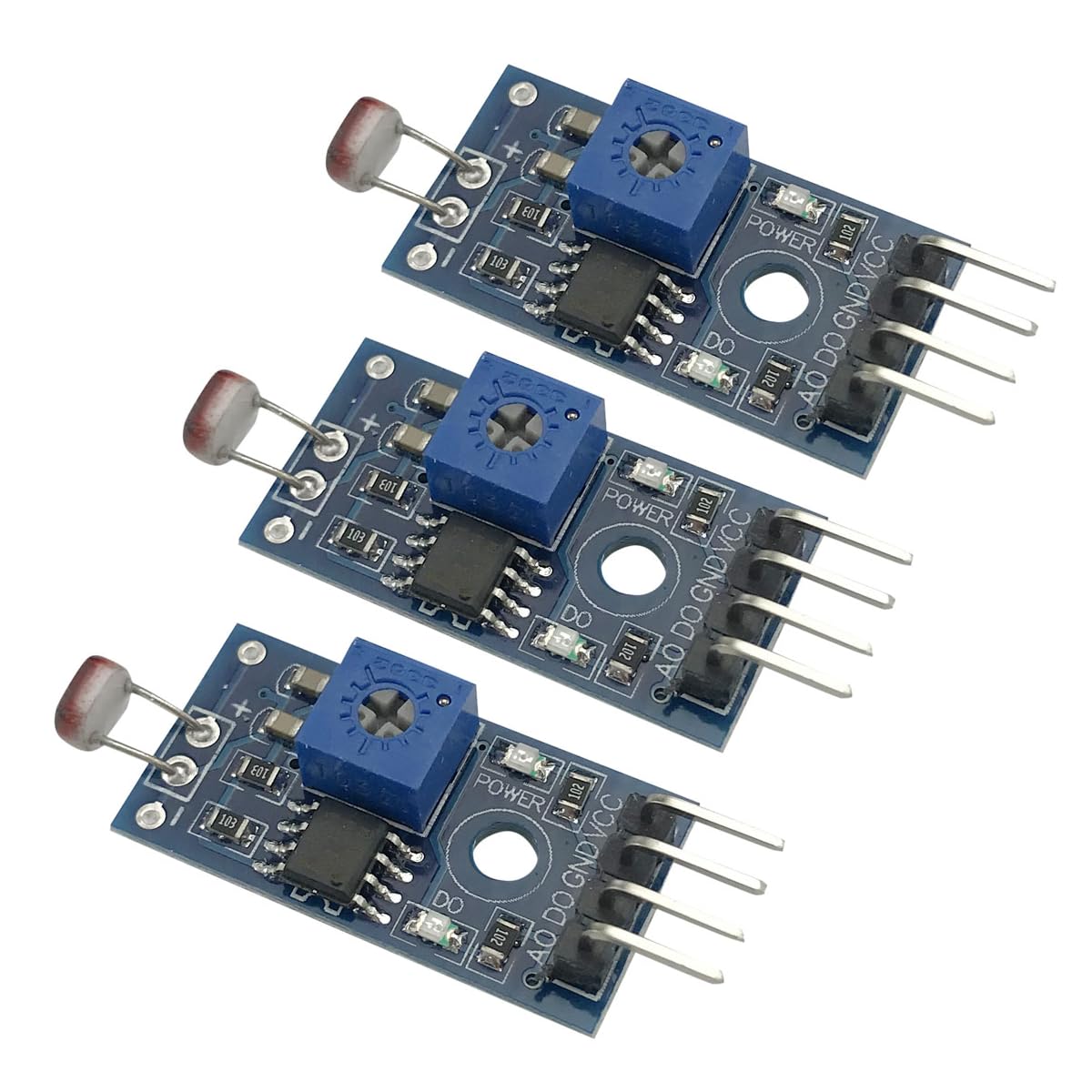

****ONLY ONE**** VKLSVAN 3PCS Photosensitive Sensor Module Digital Light Intensity Detection Light Sensor Photosensitive diode Photoresistor Module 4pins DC 3.3-5V LM393 Comparator
****ONLY ONE**** VKLSVAN 3PCS Photosensitive Sensor Module Digital Light Intensity Detection Light Sensor Photosensitive diode Photoresistor Module 4pins DC 3.3-5V LM393 Comparator
Description
Module features: 1. Use sensitive photoresistor sensor 2. Working voltage 3.3V-5V 3. Comparator output, clean signal, good waveform, strong driving ability, exceeding 15mA. 4. Equipped with adjustable potentiometer to adjust the brightness of the detected light. 5. Output form: DO digital switch output (0 and 1) and AO analog voltage output. 6. Equipped with fixing bolt holes for easy installation. 7. Use wide voltage LM393 comparator. 8. Small board PCB size: 32mm x 14mm. Module usage instructions: 1. The photoresistor module is most sensitive to ambient light and is generally used to detect the brightness of the ambient light and trigger the microcontroller or relay module; 2. When the ambient light brightness does not reach the set threshold, the DO end outputs a high level. When the ambient light brightness exceeds the set threshold, the DO end outputs a low level; 3. The DO output end can be directly connected to the microcontroller, and the high and low levels are detected by the microcontroller to detect the change in the ambient light brightness; 4. The DO output end can directly drive the relay module of our store, thereby forming a light-controlled switch. 5. The analog output AO of the small board can be connected to the AD module. Through AD conversion, a more accurate value of the ambient light intensity can be obtained. Application: Light brightness detection, light brightness sensor, smart car light-seeking module. Package contain: 3PCS Photosensitive Sensor Module Light Intensity Detection module
Item Details
Seller
Nellis Auction
Pickup Location
3615 W Grand Pkwy N
Katy, TX, 77449
Quality
Estimated Retail Price
$4.95
Buyers Premium
15%
Inventory Number
1064593100
Found in
Additional Details from the Manufacturer
This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing
brand
VKLSVANMore features
- Supply voltage: DC 3.3-5V ; Output : Digital signal 0&1; Adopt sensitive photoresistor sensor, Comparator output, clean signal, good waveform, strong driving ability, more than 15mA.
- The photoresistor module is most sensitive to ambient light and is generally used to detect the brightness of the ambient light and trigger the microcontroller or relay module, etc.Equipped with adjustable potentiometer to adjust the brightness of the detected light.
- With power indicator (red) and relay pull-in indicator (blue), and four M3 screw mounting holes for easy installation.
- When ambient light intensity does not reach the threshold value, the module DO port output high; when the ambient light intensity exceeds a set threshold, the D0 output low;Digital outputs D0 can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting the light intensity changes in the environment.
- The DO output terminal can be directly connected to the microcontroller, and the microcontroller is used to detect high and low levels to detect changes in ambient light brightness; The DO output terminal can directly drive the relay module, thereby forming a light-controlled switch.The analog output AO of the small board can be connected to the AD module. Through AD conversion, a more accurate value of the ambient light intensity can be obtained.
