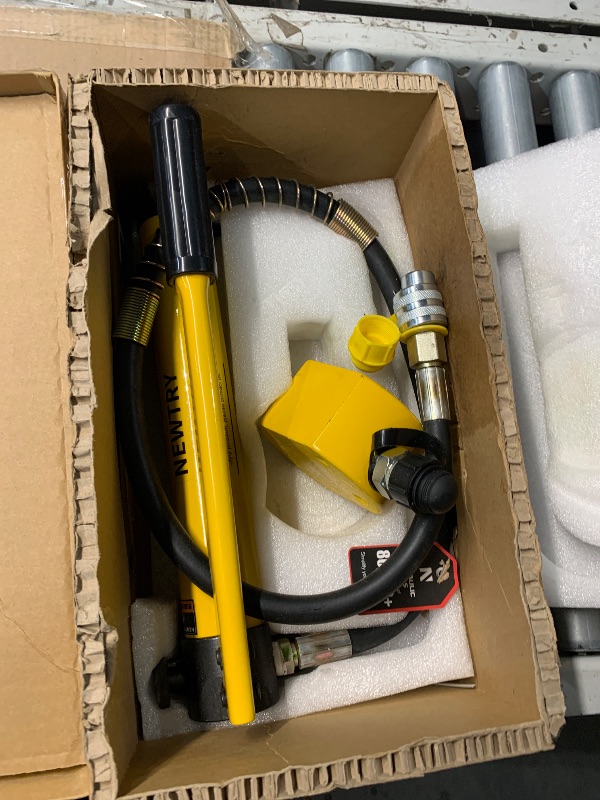

(PARTS) NEWTRY 20T Low Profile Hydraulic Jack Porta Power Kit + CP-180 Manual Hydraulic Hand Pump Multi Section Jack, 1.18” Stroke Industrial Mini Hydraulic Cylinder

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• ▷Jack Parameters---Tonnage: 20T | Stroke 1: 0.63 inch/16MM | Stroke 2: 0.55 inch/14MM | Total stroke: 1.18 inches/30MM | Oil storage capacity: 41CC | Self height: 2.24 inches/57MM | Weight: 6.17 lbs/2.8kg | Compression area: 3.04 square inches/19.6cm2 | Inner diameter 1: 1.18 inches/30mm | Inner diameter 2: 1.97 inches/50mm | Inner diameter 3: / | External diameter: 3.11x3.90 inches/79x99mm
• ▷Pump Parameters---Oil capacity: 400cc | High pressure output: 600kg/cm2 | Length: 13.4”/340mm | Weight: 7.7lbs/3.5kg | Oil pipe coupling with: 3/8'' connector | Hose length : 31”/0.8m. When using the cp - 180 manual hydraulic pump, which has a relatively small oil volume, you may need to press the handle several times to slowly lift the hydraulic jack. This is not a quality issue.
• ▷Convenient Mounting Options---Featuring two pre-drilled holes, this multi - section jack offers convenient mounting options. Whether you need to install it in a workshop, these holes simplify the mounting process. Just note that after pressure release, the piston needs external gravity to retract.
• ▷Leak - Proof and Dust - Resistant Design---The joints of this hydraulic jack are equipped with a plastic dust - proof cap. It prevent oil leakage and keep dust away from the internal components, maintaining the jack's performance over time. This leak - proof and dust - resistant design ensures that the jack remains in good working condition.
• ▷Compact Design with Strong Functionality---This hydraulic porta power ram features a compact size, making it suitable for use in tight spaces. It has a notable working capacity, providing both portability and flexibility during operation. With its small size, it can generate a substantial lifting force. This makes it a practical tool for various applications where space is limited yet reliable performance is required.
