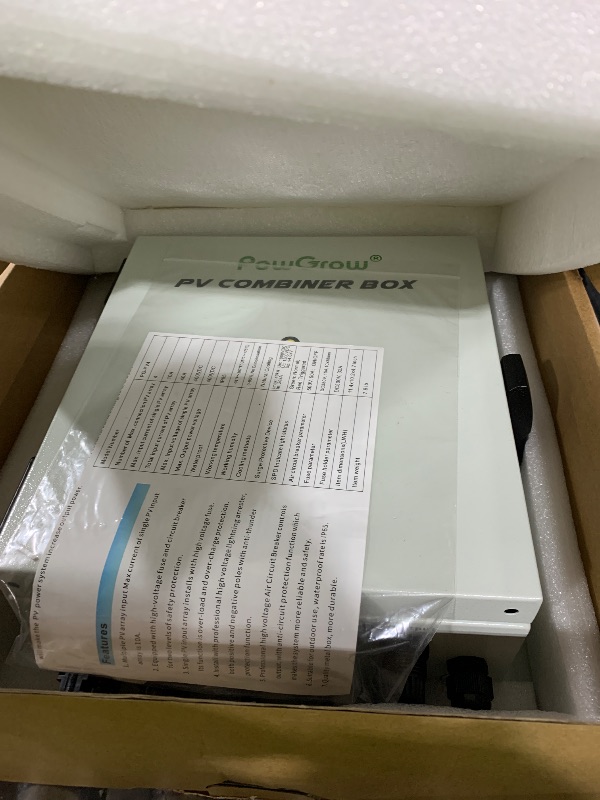

PowGrow PV Combiner Box, 4 String Metal Solar Combiner Box with 15A Rated Current Fuse, Surge Protective Device and 50A Air Circuit Breaker for On/Off Grid Solar Panel System, Pre-Wired Cable

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• Professional PV combiner box is suitable for your Photovoltaic On/Off-Grid Solar Power Generation Systems. Which makes your solar panel system work reliably and safety. With multifunction: PV array input with first class combination, Quickly cut off circuit, anti-thunder protection, anti-reverse, overload, etc.
• Metal box with a lock. Waterproof class: IP65. Durable metal box makes it much more suitable for outside use and installation. It has a longer lasting time than the PVC plastic solar combiner box. The internal mount plate is also made of metal.
• High quality wires. All wires are pre-wired in the box. Our solar combiner box is used professional wires that are especially for solar system. Built-in with a ground wire connector, the ground wire installation is available. Please ensure the current and voltage of single PV array doesn’t exceed 10A/250VDC. Then you can connect solar panel to the combiner box.
• Built in with 4pcs individual 15A rated fuse(10x38mm). Max current of single PV input array is 10A. Their function is over load protection. The Combiner Box protects PV solar panel and inverter. Besides it will reduce the length of cable connect from panel to inverter, optimize system instruction makes the system more useful and maintenance. All in all. It will make the PV power system increase output power.
• 50A air circuit breaker. It can provide short circuit fault protection and controls the combiner box output. Here is a Surge Protective Device/Lighting Arrester provides lightning protection. The “Green” indicates Normal, once it changes into “Red”. Remember to replace the SPD with a new one.
