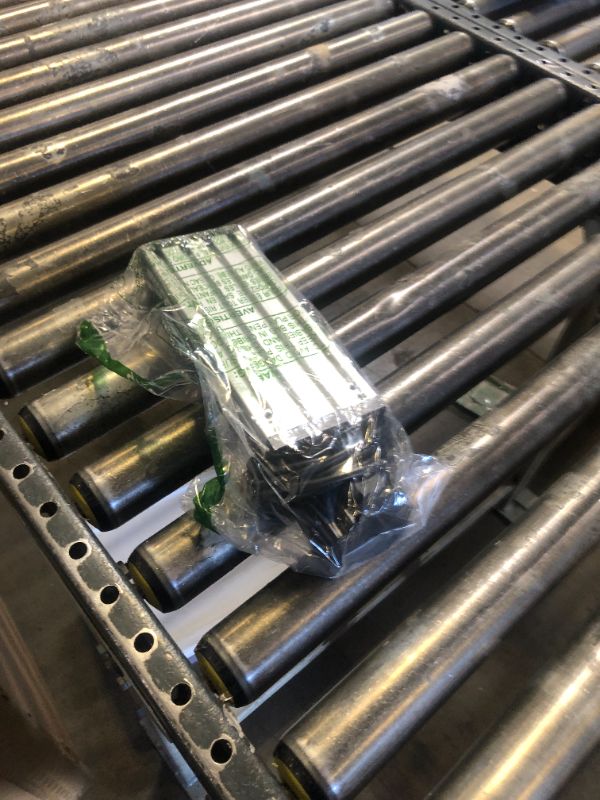

RATTMMOTOR HBX1605 100mm / 3.94" Linear Motion Guide Actuator Double Linear Rail Slide 1605 Ballscrew Motorized XY XYZ Linear Stage Table Nema23 Stepper Motor for DIY CNC Router Engraver Machine

Features

• 【Product Structure Analysis】- Nema23 stepper motor + motor flange plate + coupling + bearing support seat + double line rail slide table + 1605 ball screw + slide table + bearing seat + base. Horizontal load: 60KG/132.28 Ib ; Vertical load: 30KG/66.14 Ib.
• 【Nema23 Stepper Motor】- Motor length: 56mm. Motor flange size: 57mm. Holding torque: 1.2N.m. Phase: 2. Current: 3A. Resistance: 0.8 Ω. Inductance: 2.4mH. Rotor Inertia: 440g.cm. Wiring: Red(A+), Green(A-), Yellow(B+), Blue(B-).
• 【1605 Ball Screw】- Drive type:1605 ball screw. Effective travel length: 100mm / 3.94inch. Screw precision grade: C7. Screw Pitch: 5mm. Flange nut screw rod with precision up to 0.003mm. High efficiency and low noise.
• 【Features】- Double line rail sliding table design, high precision, more stable operation. Adding bearing support seat, high concentricity. Sliding nut design on the side, limit switch can be installed at any position. The slider is made of 6030 aluminum and are oxidized, which is beautiful and generous.
• 【Main Application】- The important hardware equipment that constitutes industrialized machinery can accurately control the accuracy and speed of the moving parts of mechanical equipment. It is suitable for CNC machine, placement equipment, laser cutting equipment, spraying equipment, medical equipment, battery equipment and other industrial automation fields.
