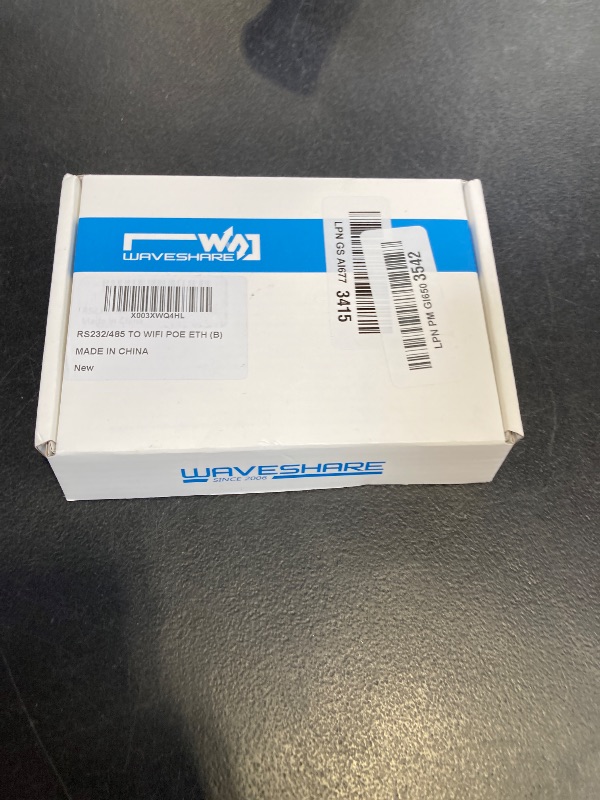

RS232/485 to WiFi POE Ethernet Serial Server Converter, Modbus/MQTT Gateway, Support Serial to WIFI, Serial to Ethernet, Ethernet to WIFI, Serial to HTTPD Client etc. DC 6~36V/PoE Power Supply

Overview Industrial serial server RS232/485 to WiFi and Ethernet, Modbus Gateway, MQTT Gateway, with PoE function. RS232/485 device data acquisitor/IoT gateway designed for industrial environment Specifications Product Description--Industrial rail-mount/wall-mount module with metal case, PoE function Power supply--DC 6~36V / PoE port Power supply method--DC 5.5 power port, screw terminal, or PoE port Dimensions(L × W × H)--84.00×64.00×24.00mm Communication Ethernet--10 / 100M auto-negotiation RJ45 connector WIFI--802.11b/g/n compliant Serial port --RS232 (ESD/EFT) --RS485 (ESD/EFT/surge protection) Wireless Specification Frequency Band--2.412 ~ 2.484 GHz Wireless network--Station / AP / AP+Station Mode Security mechanism--WPA-PSK / WPA2-PSK Encryption type--TKIP / AES Transmitting power --802.11b: +19dBm (Max.@11Mbps) --802.11g: +18dBm (Max.@54Mbps) --802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7) Receiving sensitivity --802.11b: -89dBm (@11Mbps) --802.11g: -81dBm (@54Mbps) --802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7) Serial Specification Baudrate--300 ~ 460800 bps Parity bit--none, odd, even, mark, space Data bit--5 ~ 9 bits Software Protocol--TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT Configuration--host, web browser, serial AT command Communication method--TCP/IP direct communication, VCOM Operating mode--Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU Environment Requirement Operating temperature-- -40℃ ~ 85℃ Humidity range-- 5% ~ 95% relative humidity Package Content RS232/485 TO WIFI POE ETH (B) x1 2.4G WiFi antenna x1 Rail-mount buckle x1 Screwdriver x1 Screws pack x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
