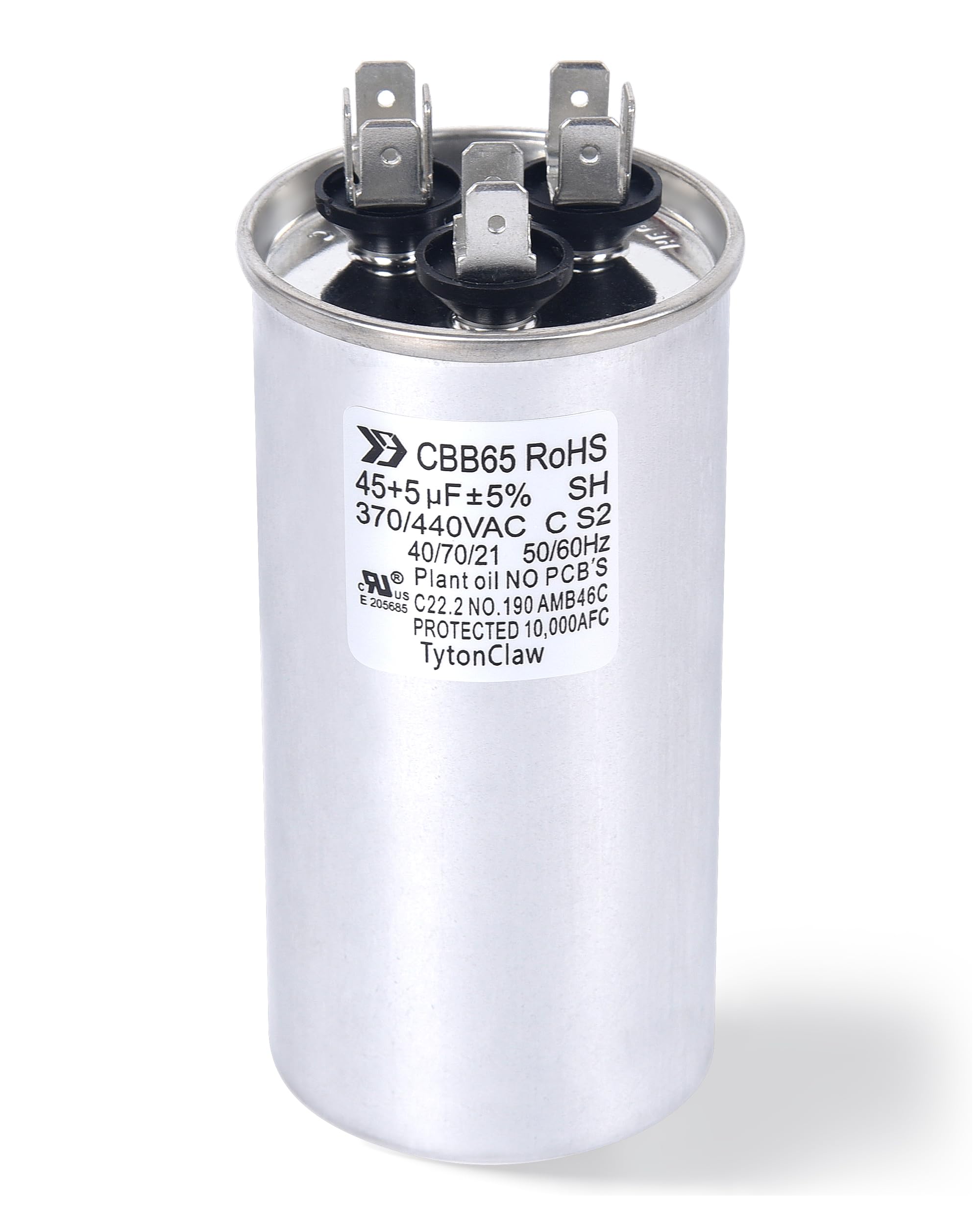

[UL Recognized] 45+5 µF 45/5 MFD ±5% Dual Run Capacitor for Condenser

TytonClaw 45+5 µF / 45/5 MFD ±5% Dual Run Capacitor Replace a weak or failed AC run capacitor and help restore normal fan and compressor operation in a compatible HVAC system. This CBB65 round dual run capacitor is designed for AC condensers, fan motors, compressor motors, heat pumps, and straight cool units. Product Specifications: Capacitance: 45+5 µF / 45/5 MFD Tolerance: ±5% Voltage Rating: 370/440VAC Frequency: 50/60Hz Certification: UL Recognized Component Type: CBB65 round dual run capacitor Dielectric Material: Metallized polypropylene film Size: 2" diameter x 4" height Terminals: HERM/H for compressor, FAN/F for fan motor, C for common Safety Rating: Protected 10,000 AFC Construction: Plant oil, No PCBs Common Cross-Reference Numbers: 97F9895, 27L880, Z97F995, 97F9895BZ3, and similar 45+5 MFD HVAC capacitor part numbers. 4 Easy Installation Steps: Step 1: Turn off power to the AC unit and locate the old capacitor. Step 2: Discharge the old capacitor safely before handling. Step 3: Take a photo of the wiring, then connect the wires to the matching terminals: HERM/H, FAN/F, and C. Step 4: Secure the new capacitor, reinstall the access panel, restore power, and test the unit. Important Note: Before ordering, compare your old capacitor’s µF rating, voltage, terminal layout, and size. Use only as a replacement for a matching HVAC capacitor. If you are not familiar with HVAC electrical repair, contact a qualified technician.
