YiToo Access Control System Kit 433MHz Remote Control Opener with Eletric Drop Bolt Lock 12VDC for Narrow Door

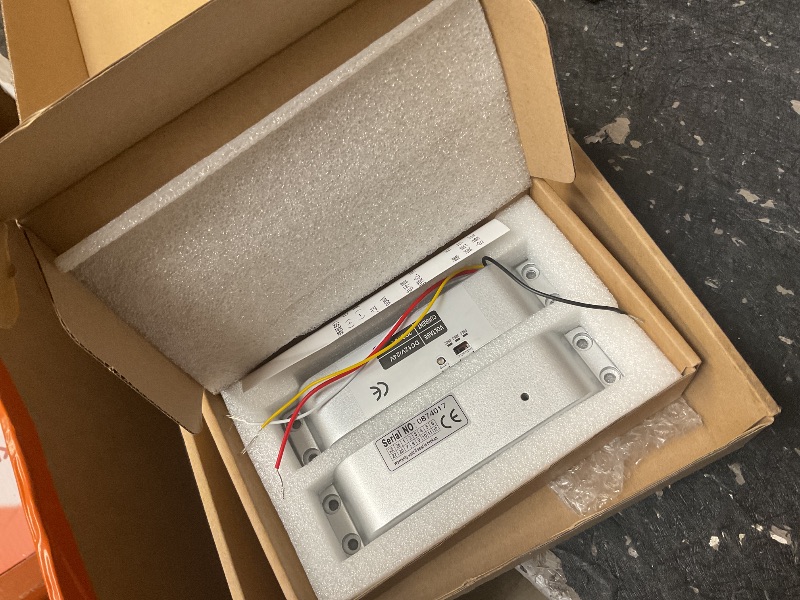

Electric Drop Bolt Lock:Dimensions: 150x34x28mm/5.91x1.34x1.10inch Lock Core: The diameter is 12.5MM, extending the length of 15MM Working Voltage: 12VDC Current: Start-up 1.2A Persistent state 120mA Fail safe, NC mode. Unlocked when power is removed. Installation: Unfold install Time delay: 0/3/6 seconds (Factory setting: 0) Material: Aluminum alloy Tips: Yellow wire and white wire are useless, don't need to be connected. Suitable For: Wooden Door, Metal Door, Fireproof Door, Glass Door,etc. Remote Receiver: Working Voltage: 12VDC Working Frequency: 433MHz RF Channels: 1 DC Encoding Type: Learning code Supporting Transmitter: up to 40 Operating Distance: 98.43 feet (open) in theory, 15%-30% in reality Locking Delay Time: 0/5/10 seconds adjustable Working Mode: Momentary/Toggle/Latched Built-in DC power connector, wiring easy. Using Environment: indoor using (Non-waterproof) Working Humidity: 20%RH-80%RF Working Temperature: 32℉ ~ 113℉ Material: ABS plastic 12V Power Adapter: Input: AC100-240V, 50/60Hz Max Output: DC12V / 2A (2000mA) Cable Length: 1.5 metter (4.92 feet) Remote Transmitter: Working voltage: 6VDC Working Current: 10mA Powerd by: 2pcs CR2016 batteries (Built-in) Exit Button: Size: 30x23x80 mm / 1.18x0.9x3.15 inch Working Voltage & Current: 3A / 36VDC Max Output Contact：NO/COM Material: stainless steel Package: 1 x Electric Drop Bolt Lock 1 x Remote Receiver 2 x Transmitters 1 x Exit Button 1 x Power Adapter 2 x 2 Pin Cable 1 x English User Manual Warm Tips: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
