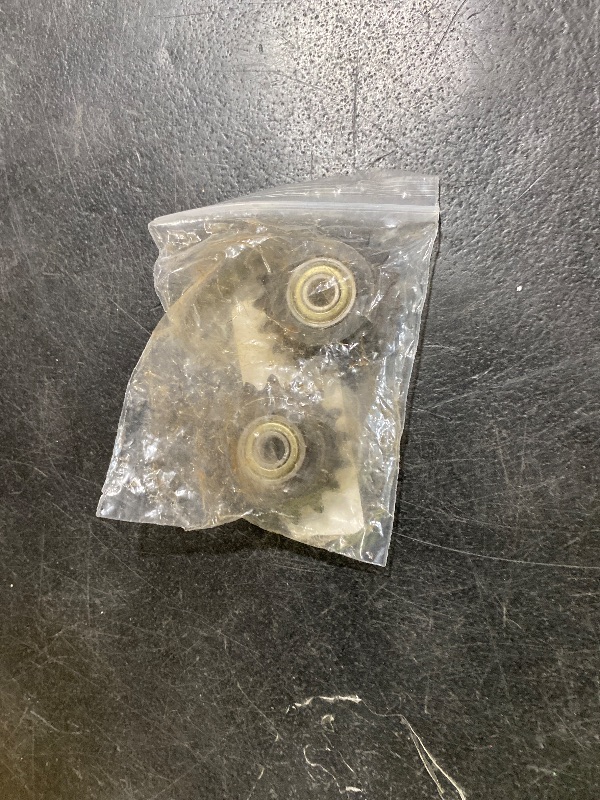

uxcell #25 Roller Chain Idler Sprocket, 6mm Bore 1/4" Pitch 17 Tooth Sprocket Tensioner, C45 Carbon Steel 25 Roller Chain Sprocket with Bearing for ISO 04C Chain, 2Pcs

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• Specifications: Number of Teeth: 17; Outside Diameter: 37mm / 1.46-inch; Bump Width: 5mm / 0.2-inch; Total Width: 13mm / 0.51-inch; Bore Diameter: 6mm / 0.24-inch; Pitch: 1/4-inch / 6.35mm; Tooth Width: 3mm / 0.12-inch; 2 x Idler Sprocket
• Idler sprocket is a flat sprocket, with a sealed bearing that allows the sprocket to rotate freely. Idler sprockets are normally mounted in a fixed position on a fixed shaft.
• The product is made of c45 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use.
• The Idler sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain idler sprocket comes with strong teeth that can latch onto the chain. It is suggested that idler sprockets have at least three teeth in mesh with the chain.
• Widely used in milling machine, drilling machine or other machinery transmission occasions.
