weyleity Fuel Pump and Vacuum Tester Gauge | Vacuum and Fuel Pump Tester Gauge Kit Carburetor Pressure Fuel Pressure Tester Kit Automotive Vacuum Gauge (Blue)

Features

• 【Versatile Testing Capability】 This professional fuel pump and vacuum tester gauge took kit allows for 4 main tests: fuel pump pressure, fuel pump vacuum, carburetor intake manifold, and overall vacuum system tests. It's designed for testing engine vacuum lines, brake assist system, carburetor and intake manifold for leaks, vacuum or pressure loss.
• 【Wide Application and Diagnostic Functionality】 The vacuum and fuel pump tester gauge kit enables testing of the fuel delivery pressure to the engine to check for worn or defective parts. Ideal for diagnosing various engine issues, including fuel pump pressure, leaking valves, incorrect timing, intake manifold leaks, and clogged mufflers. The kit includes a range of adapters suitable for most vehicles, making it versatile for different automotive diagnostic needs. Fuel pump operating pressures up to 10 PSI (0.7 Bar).
• 【Package List】 1 x Vacuum Pressure Gauge, 1 x 2ft/61cm Long Rubber Hose – 13/64-inch ID 23/64-inch OD, 1 x Brass Cone Adapter, 1 x Plastic Connector, 1 x 1/4''x18 male to 1/8''-27 female Brass Adapter, 1 x 1/8''-27 male to 7/32'' Barbed Brass Fitting Adapter, 1 x 1/8''-27 female to 3/8'' male Brass Adapter, 1 x T-type 7/32'' Barded Brass Fitting Adapter, 1 x Storage Case.
• 【Pressure Gauge】 The fuel pump tester gauge kit features a large 4-inch (10.2cm) diameter scale with color-coded measurements scales for clear visibility and ease of use. 1.2-inch (3cm) thickness with rubber side notches for a secure grip, and a hook on the top. The gauge covers a range of 0-28 IN-Hg (0-70 cm-HG) for vacuum measurements and 0-10 PSIG (0-0.7 kg/cm²) for pressure measurements. This kit comes complete with an 24" extra-long rubber hose and 14mm/18mm manifold adapters. Rubber hose 40 PSI (2.8 Bar) maximum working pressure.

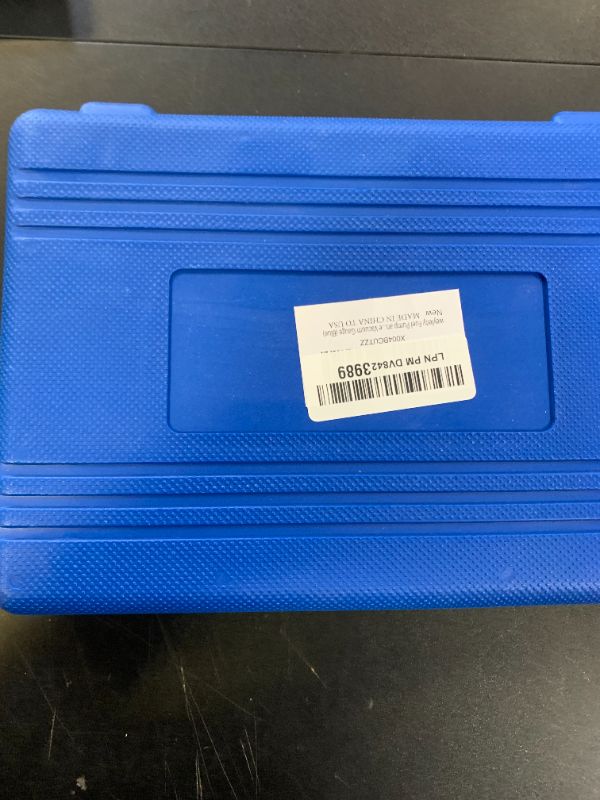

• 【Convenient Storage and Transportation】 Our carburetor valve fuel pump pressure & vacuum tester gauge test kit includes a heavy-duty carrying case, ensuring easy transportation, safe storage, and quick organization to prevent parts from getting lost.
